RONEN Factory Directly Supply Wrench Screw Rolling Machine For Sell. As the professional Fastener machinery manufacturer, RONEN MACHINERY would like to provide you Wrench Screw Rolling Machine with high quality and reasonable price. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Wrench Screw Rolling Machine advantages:
1.The transmission system of the spindle adopts multi-pole gear box, which can realize smooth transmission and convenient speed change.
2.The machine hydraulic system adopts the superposition valve, takes up the space small, the appearance is artistic, the function is stable is easy to use and the maintenance.
2.Product Parameter (Specification)

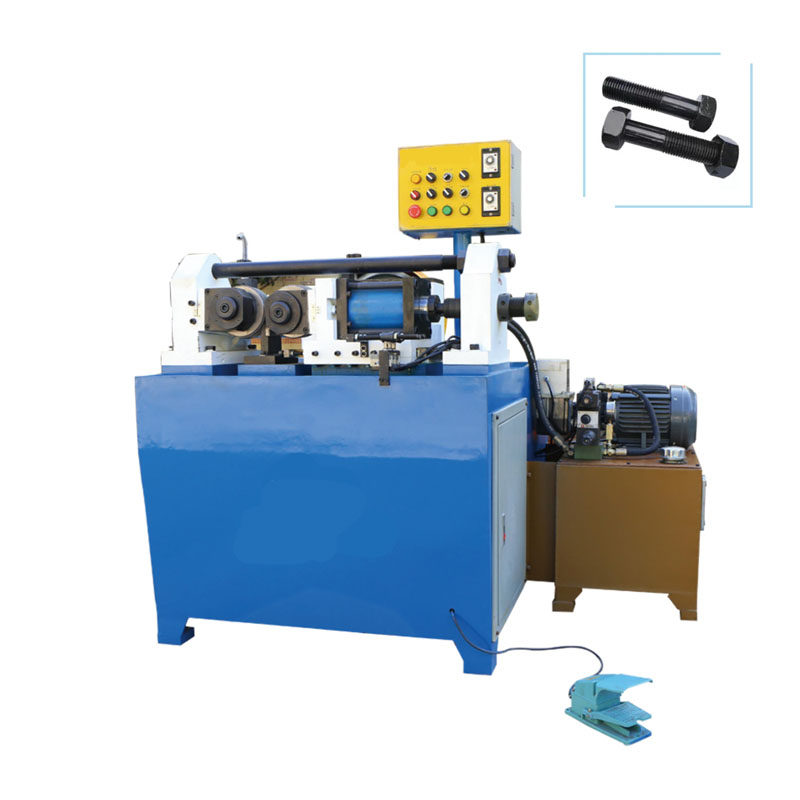

Two-Axles Hydraulic Wrench Screw Rolling Machine:
|
Model |
M4-M20 |
M2-M12 |
|
Rolling method |
Single or continuous piece of thread rolling |
Single or continuous piece of thread rolling |
|
Rolling workpiece diameter range |
ø3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Thread pitch range |
0.4-2.5P |
0.4-1.5P |
|
The maximum length of the thread |
Fixed or Thru-feeding |
Fixed or Thru-feeding |
|
Rotate speed |
30r/min |
40r/min |
|
Roller outer diameter |
ø95-ø120mm |
ø98mm |
|
Roller inner diameter (grove) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
Roller thickness |
60mm |
50mm |
|
Capacity |
80pcs/min |
80-220pcs/min |
|
Host motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulic motor |
2HP(1.5KW) |
2HP(1.5KW) |
|
Weight |
680 KG |
3600KG |
|
Mechanical volume |
1100*1000*1200mm |
1000*1450*750mm |
Three-Axles Cam Type Wrench Screw Rolling Machine:
|
Model |
M12-M35 |
M20-M60 |
|
Rolling method |
Single piece of thread rolling |
Single piece of thread rolling |
|
Rolling workpiece diameter range |
ø11.2--ø34.2mm |
ø19.2-ø59.2mm |
|
Thread pitch range |
0.5-2.5P |
0.8-3.5P |
|
The maximum length of the thread |
26mm |
26mm |
|
Rotate speed |
480r/min |
300r/min |
|
Roller outer diameter |
ø45-ø75mm |
ø52-ø115mm |
|
Roller inner diameter (grove) |
ø35mm(10×5) |
ø40mm(12×6) |
|
Roller thickness |
30mm |
30mm |
|
Capacity |
28pcs/min |
20pcs/min |
|
Host motor |
1.5Kw |
3Kw |
|
Hydraulic motor |
380v |
380v |
|
Weight |
220KG |
280KG |
|
Mechanical volume |
1000*850*1250mm |
1100*950*1250mm30mm |
Three-Axles Thru-Feed Wrench Screw Rolling Machine:
|
Model |
Max. Thread Diameter (mm) |
Max. Thread Length (mm) |
Moving Dies Stationary Length (mm) (L*TH.*W) |
Motor (Kw) |
Capacity (pcs/min) |
Volume (L*W*H) (m) |
Weight (Kg) |
|
|
M6-70 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-200 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |
Machine Display

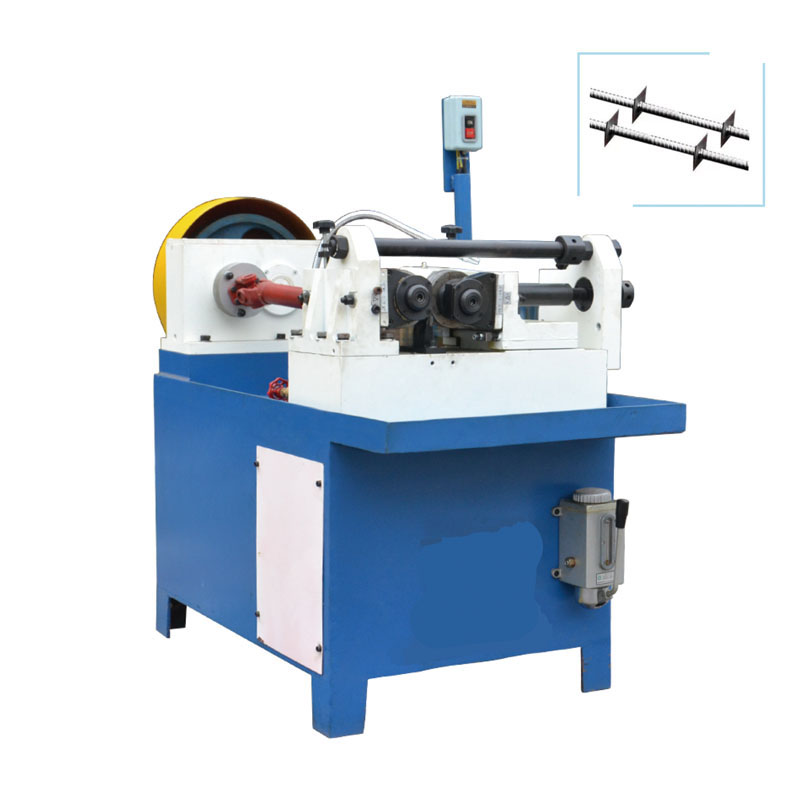

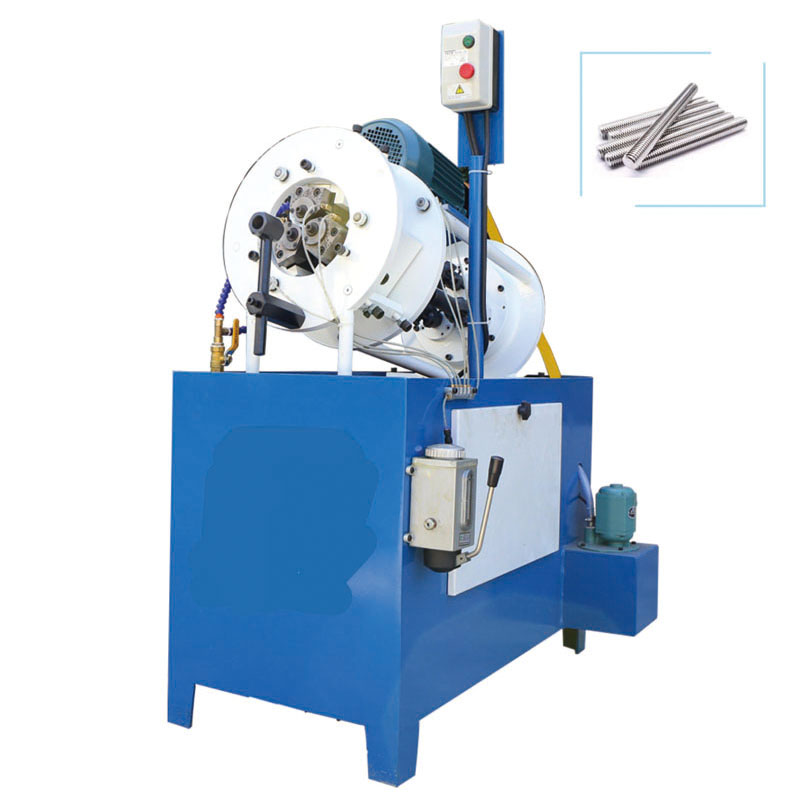

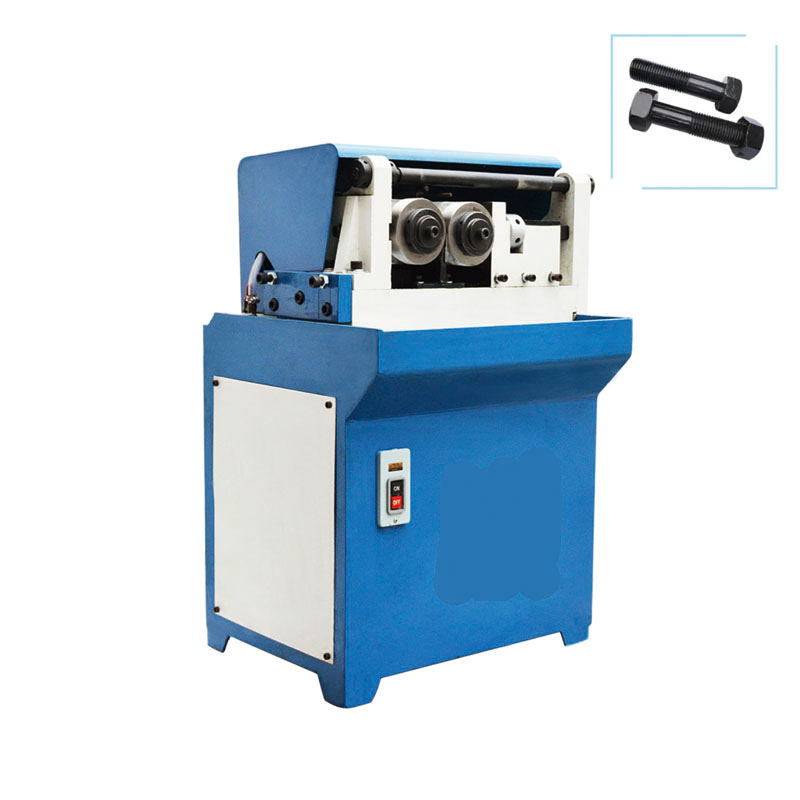

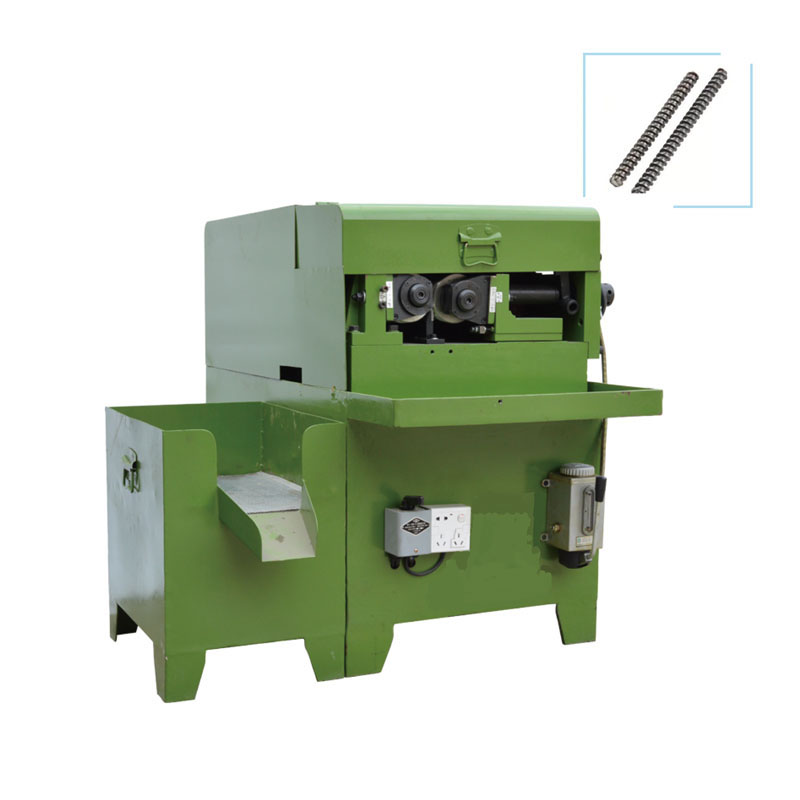

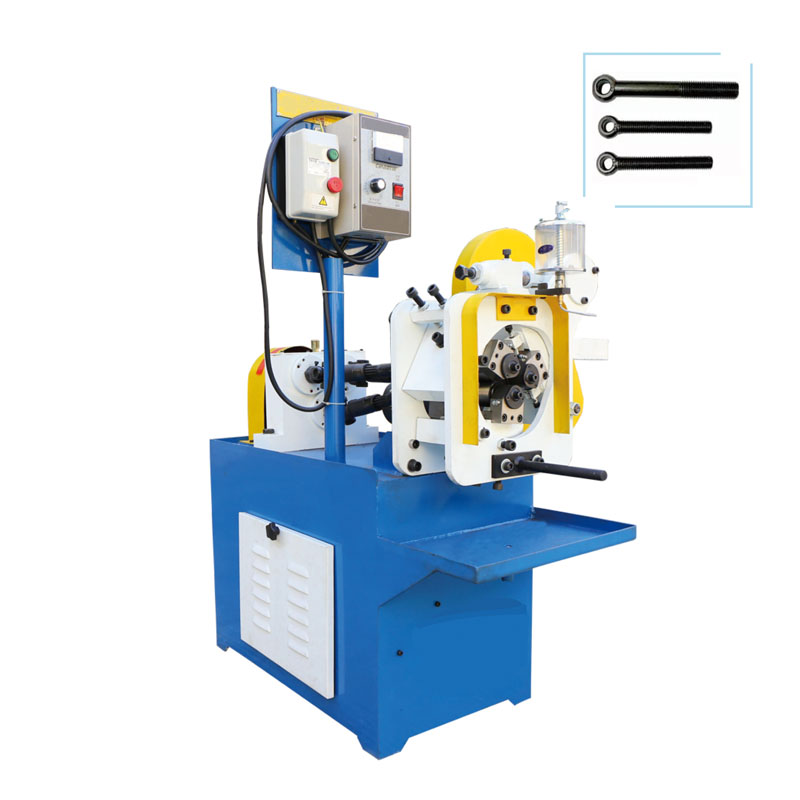

Wrench Screw Rolling Machine:
Finished products:
Product Display Video
Wrench Screw Rolling Machine video.
Related Products
RONEN MACHINERY is a professional manufacturer in producing Cold Heading Machines (Fastener) in China, provides Wrench Screw Rolling Machine, screw cold forming machine, nut cold heading machine, screw threading machine, screen sorting machine, nut screw tapping machine, bolt making machine, etc.
Certifications
Wrench Screw Rolling Machine certificates.
FAQ
Q: Can your machinery produce non-standard parts?
A: Yes, we can. We have the design and production engineers with more than 20 years of experience, we can customize according to your drawings or samples.
Q: Do you provide any training to ensure that our users can operate the machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
