Ronen® is China Cold Forging Machines (Fastener) manufacturer & supplier. High carbon steel rivet making machine uses cold heading method, perform secondary upsetting on the cavity of the whole mold. By one machine can achieve feeding, straightening, cutting material, forming, discharging. Hope to build business relationship with you.
High Carbon Steel Rivet Making Machine：
1.The machine has the superiority of high precision, small error and fast production speed, convenient operation and low maintenance rate.
2.The machine apply to the production of semi-tubular rivet with the latest material hooking system.
High Carbon Steel Rivet Making Machine Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |
Machine Details And Finished Products Display

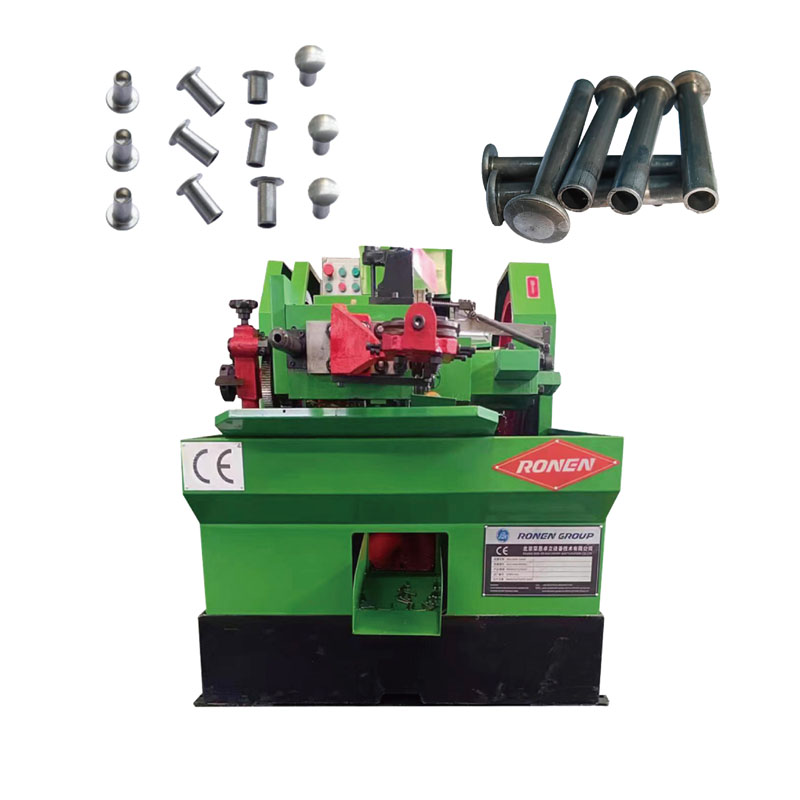

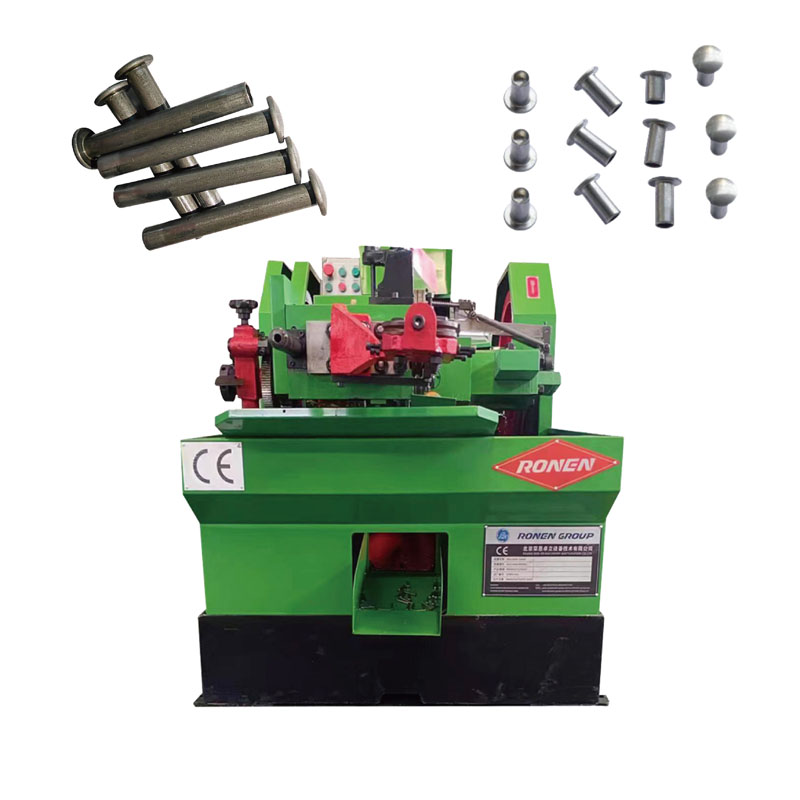

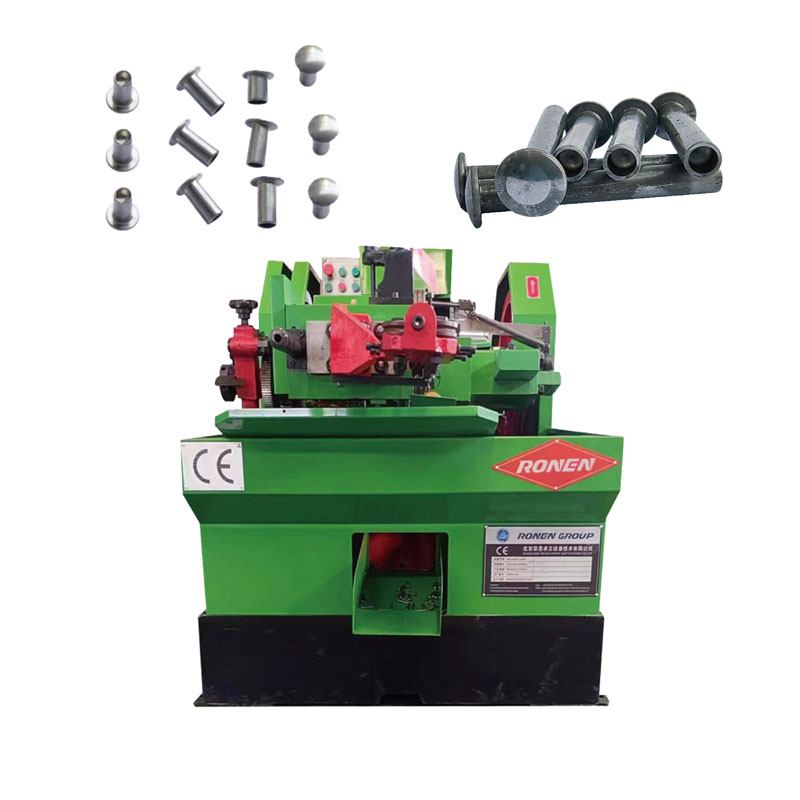

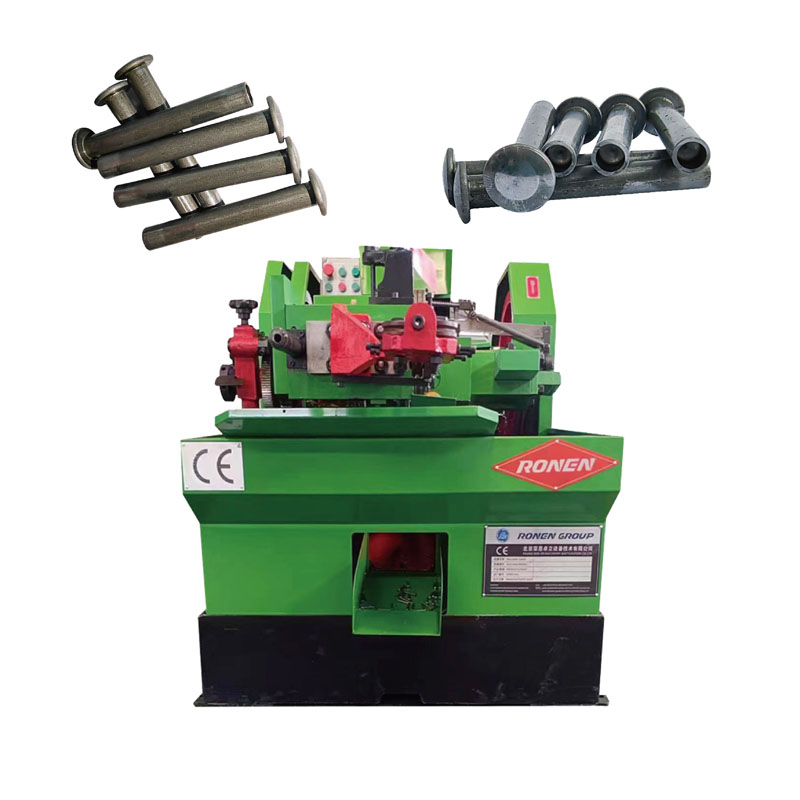

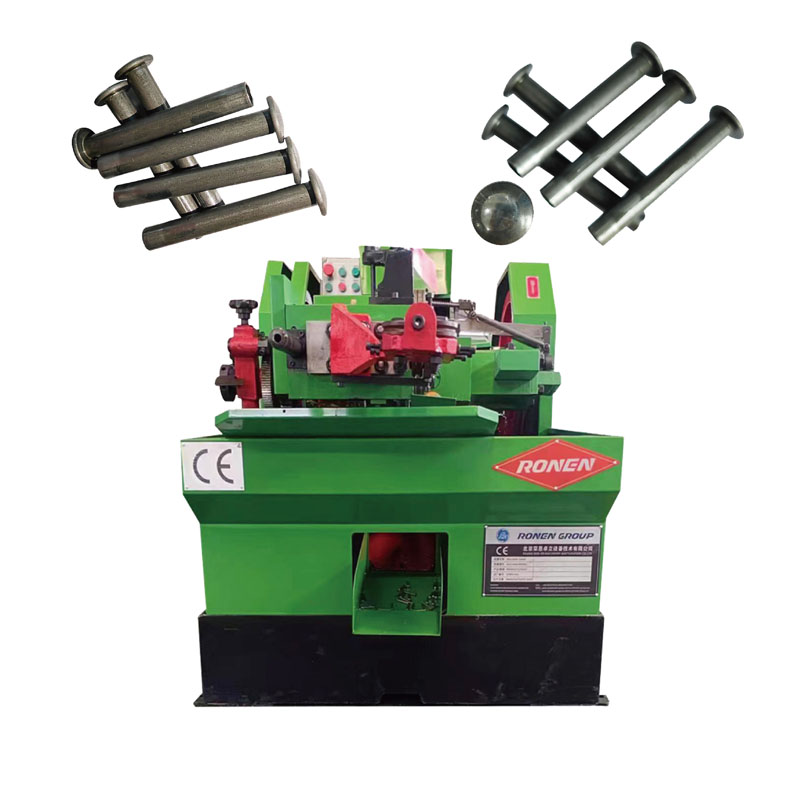

High Carbon Steel Rivet Making Machine in RONEN workshop:
The finished-products:
Product Function Display Video
High Carbon Steel Rivet Making Machine working video:
Packing And Delivery
High Carbon Steel Rivet Making Machine is packed in wood-box or else package, all as your requirements.
Certifications
High Carbon Steel Rivet Making Machine certificate.
FAQ
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q: What about delivery time?
A: Normally within 30 days,but it depends on your quantity and order time.
Q: What is the power supply of the DIN7341 Rivet Part Former?
A: The standard power supply in china is 380V, 3P, 50Hz. We can customized accordingly.
Q: If it is beyond the warranty period, can we check the technical problems with you?
A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
