High quality Wood Screw Cold Heading Machine is made by RONEN MACHINERY. RONEN MACHINERY is one of the famous China Fasteners Machines manufacturers. Our factory specializes in manufacturing and customizing of Screw Cold Forming Machine (Fasteners). Welcome to buy Wood Screw Cold Heading Machine from RONEN MACHINERY. Every request from customers is being replied within 24 hours.
Wood Screw Cold Heading Machine characteristics :
1.High precision oil pump for machinery to provide more lasting power.
2.It is used for chipboard screws, drywall screws, self drilling screws, self tapping screws, wood screws, machine screws, furniture screws, electronic screws, precision screws, fasten piece used for car and motor car, nuts, spring washer, rivets, pin bolt and split pin, steel structure used rivets and fasten pieces, kinds of metal special-shaped pieces etc products upsetting and forming.
Product Parameter (Specification)
|
Model |
D12-70 |
D12-150 |
D12-200 |
D12-250 |
D12-300 |
D12-450 |
D16-180 |
D16-450 |
|
Max.Blank Diameter (mm) |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ8.0-16 |
Φ8.0-18 |
Φ8.0-18 |
|
Max.Blank Length (mm) |
70 |
150 |
200 |
250 |
300 |
450 |
180 |
450 |
|
Max.Cut- off Length (mm) |
90 |
170 |
220 |
270 |
320 |
480 |
210 |
480 |
|
Stroke (mm) |
120 |
190 |
250 |
300 |
330 |
550 |
240 |
550 |
|
Capacity (pcs/min) |
60-70 |
40-50 |
30-40 |
30-40 |
25-35 |
25-35 |
35-40 |
25-35 |
|
Main Die Diameter (mm) |
Φ80×120 |
Φ80×200 |
Φ88×260 |
Φ88×330 |
Φ88×360 |
Φ90×540 |
Φ98×220 |
Φ98×540 |
|
The Initial Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
The Precise Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
Cut-off Die Diameter (mm) |
Φ35×45 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ60×80 |
Φ60×80 |
|
Cutter Size (mm) |
16×50×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
20×60×125 |
20×70×125 |
|
Main Motor Power (kw) |
20HP/15kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/22kw |
25HP/22kw |
25HP/22k w |
|
Volume L*W*H/(mm) |
4.50×2.00×1.32 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
6.50×2.25×2.10 |
4.40×2.10×1.95 |
6.50×2.25×2/.10 |
|
Weight (kg) |
8700 |
14000 |
14300 |
15000 |
15850 |
20800 |
20800 |
21000 |
Machine Details And Finished Products Display
RONEN MACHINERY has Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is about 15000+ Square meter.

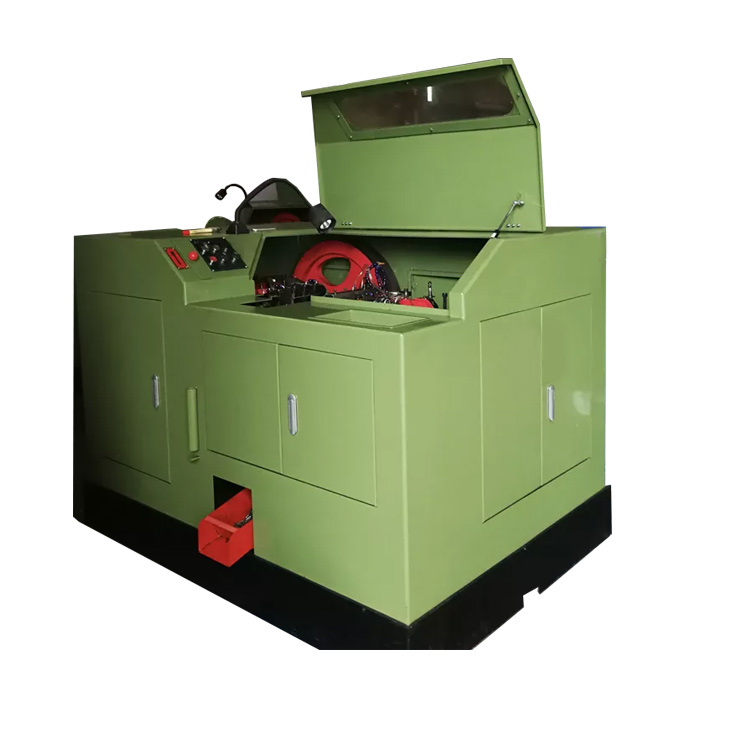

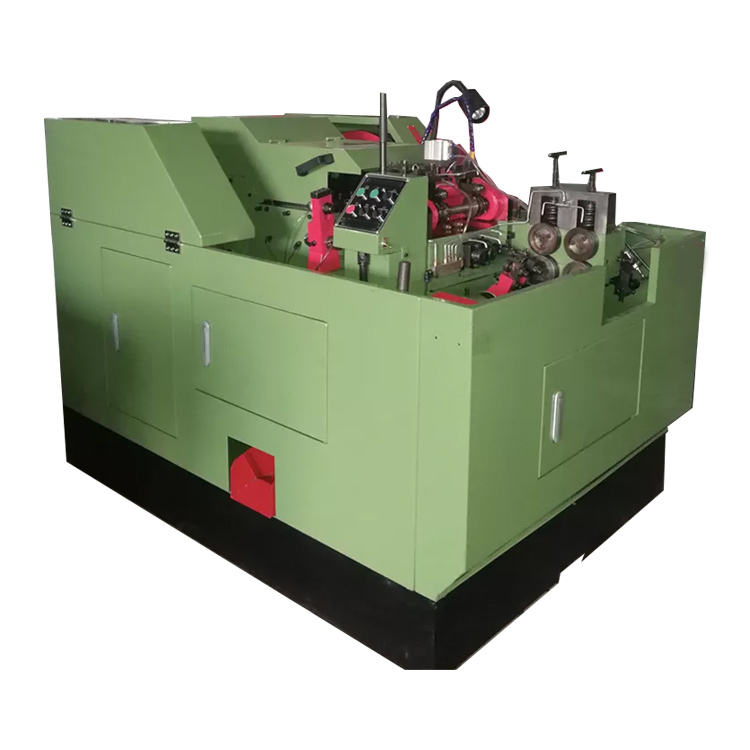

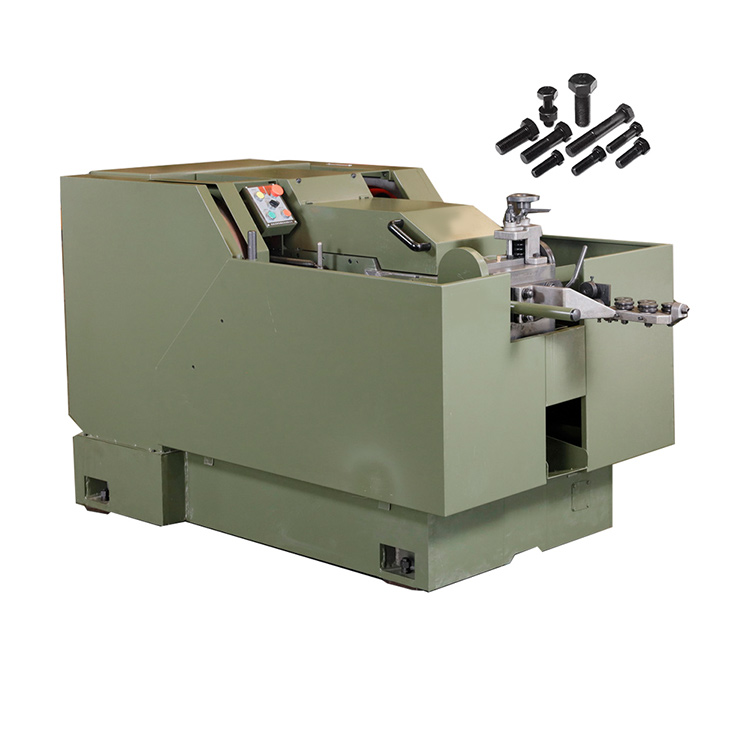

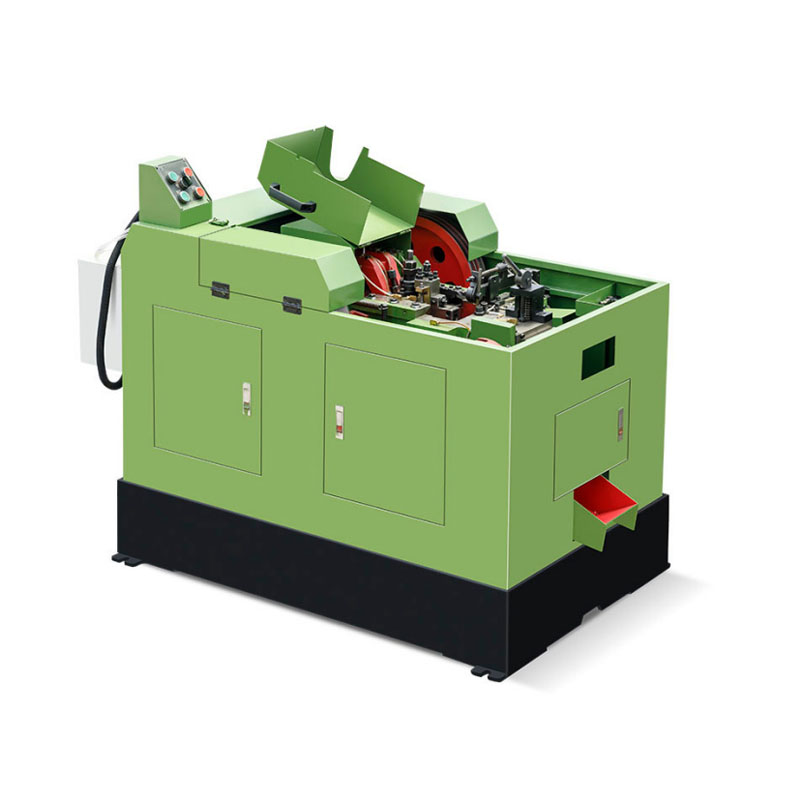

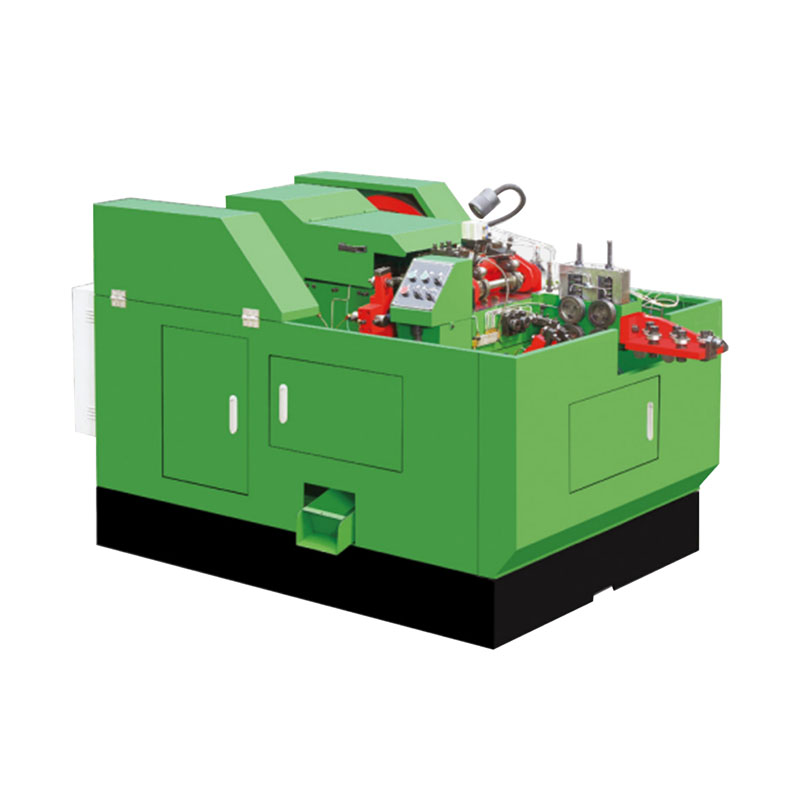

Wood Screw Cold Heading Machine details:
Wood Screw Cold Heading Machine’s finished products:
Product Function Display Video
Wood Screw Cold Heading Machine working show.
Certifications
Wood Screw Cold Heading Machine :certificates.
FAQ
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: What about delivery time?
A: Normally within 30 days,but it depends on your quantity and order time.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q: Do you provide any training to ensure that our users can operate the machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
