Hot Sale China Slotted Screw Part Thread Rolling Machine made by RONEN MACHINERY.
RONEN MACHINERY is one of the top manufacturers in China of Fasteners Making Machines. We hope to help you purchase the best suitable Slotted Screw Part Thread Rolling Machine. Welcome new and old customers to continue to cooperate with us to create a better future together!
Slotted Screw Part Thread Rolling Machine advantages:
1.Hydraulic system uses modular valves, small footprint, beautiful appearance, stable performance, ease of use and maintenance.
2.Machine control system can easily choose manual, semi-automatic, automatic three ways to adjust working hours, using new digital dial code directly controlled roller system time and pause time.
3.Transmission system using multi-polar spindle gear box, to achieve smooth transmission, shifting easily.
4.Spindle with double row needle roller bearings and cylindrical roller bearings combined to ensure the accuracy and stiffness requirements spindle.
2.Product Parameter (Specification)
Two-Axles Hydraulic Slotted Screw Part Thread Rolling Machine:
|
Model |
M4-M20 |
M2-M12 |
|
Rolling method |
Single or continuous piece of thread rolling |
Single or continuous piece of thread rolling |
|
Rolling workpiece diameter range |
ø3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Thread pitch range |
0.4-2.5P |
0.4-1.5P |
|
The maximum length of the thread |
Fixed or Thru-feeding |
Fixed or Thru-feeding |
|
Rotate speed |
30r/min |
40r/min |
|
Roller outer diameter |
ø95-ø120mm |
ø98mm |
|
Roller inner diameter (grove) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
Roller thickness |
60mm |
50mm |
|
Capacity |
80pcs/min |
80-220pcs/min |
|
Host motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulic motor |
2HP(1.5KW) |
2HP(1.5KW) |
|
Weight |
680 KG |
3600KG |
|
Mechanical volume |
1100*1000*1200mm |
1000*1450*750mm |
Three-Axles Cam Type Slotted Screw Part Thread Rolling Machine:
|
Model |
M12-M35 |
M20-M60 |
|
Rolling method |
Single piece of thread rolling |
Single piece of thread rolling |
|
Rolling workpiece diameter range |
ø11.2--ø34.2mm |
ø19.2-ø59.2mm |
|
Thread pitch range |
0.5-2.5P |
0.8-3.5P |
|
The maximum length of the thread |
26mm |
26mm |
|
Rotate speed |
480r/min |
300r/min |
|
Roller outer diameter |
ø45-ø75mm |
ø52-ø115mm |
|
Roller inner diameter (grove) |
ø35mm(10×5) |
ø40mm(12×6) |
|
Roller thickness |
30mm |
30mm |
|
Capacity |
28pcs/min |
20pcs/min |
|
Host motor |
1.5Kw |
3Kw |
|
Hydraulic motor |
380v |
380v |
|
Weight |
220KG |
280KG |
|
Mechanical volume |
1000*850*1250mm |
1100*950*1250mm30mm |
Three-Axles Thru-Feed Slotted Screw Part Thread Rolling Machine:
|
Model |
Max. Thread Diameter (mm) |
Max. Thread Length (mm) |
Moving Dies Stationary Length (mm) (L*TH.*W) |
Motor (Kw) |
Capacity (pcs/min) |
Volume (L*W*H) (m) |
Weight (Kg) |
|
|
M6-70 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-200 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |

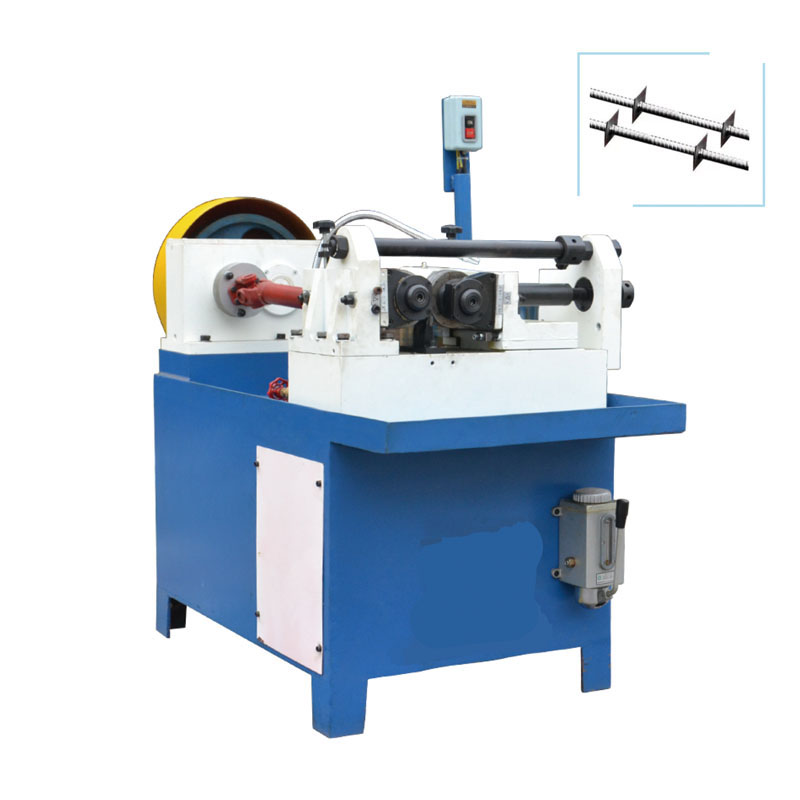

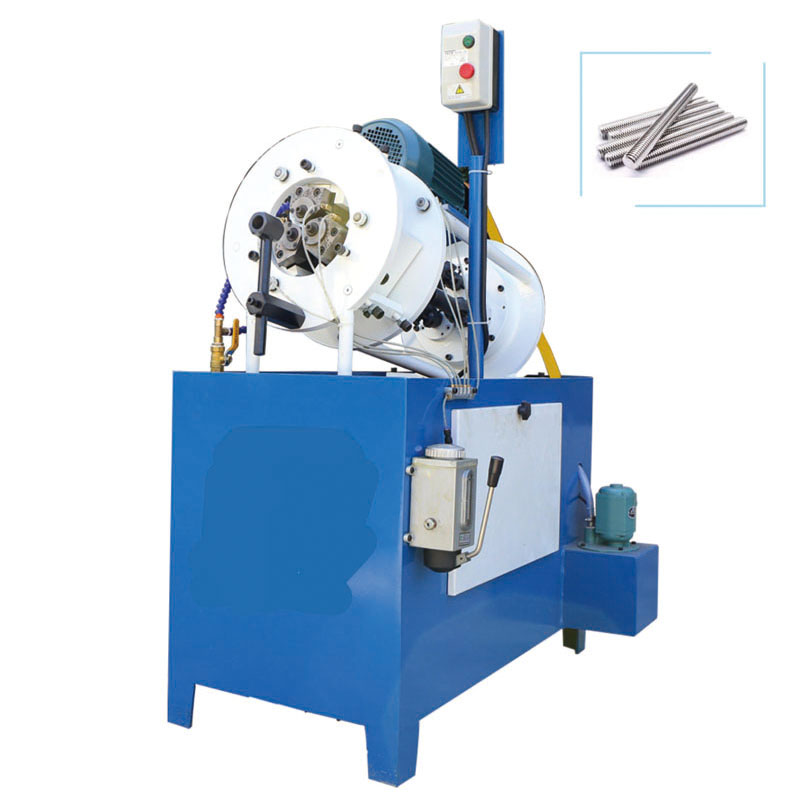

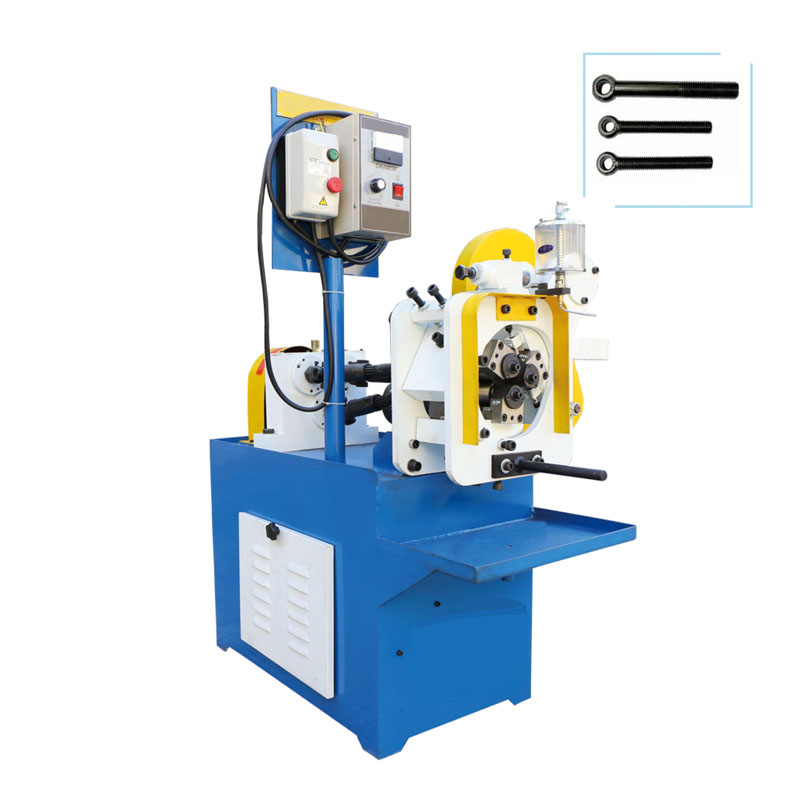

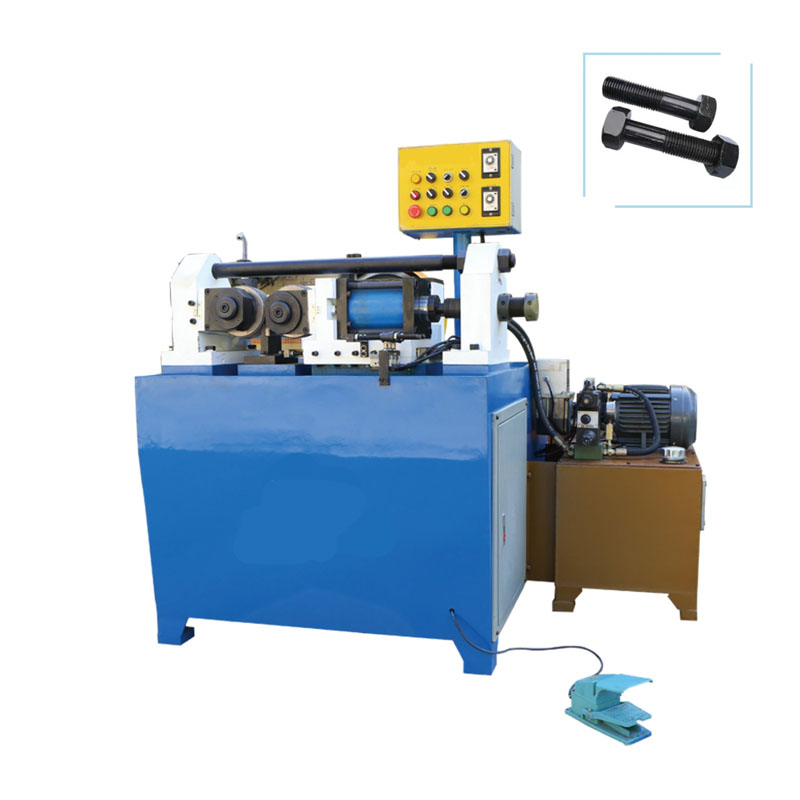

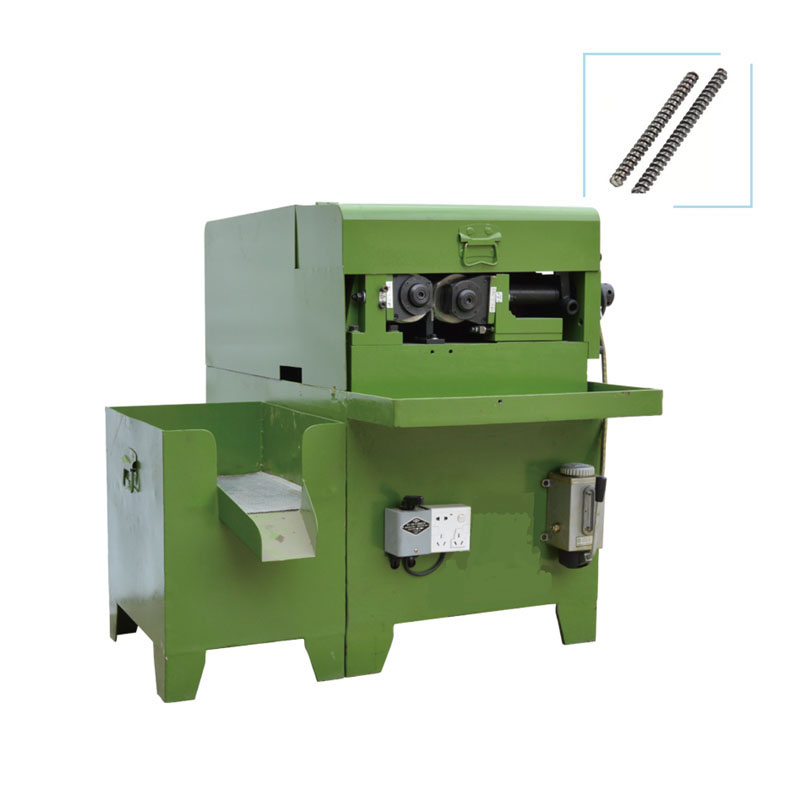

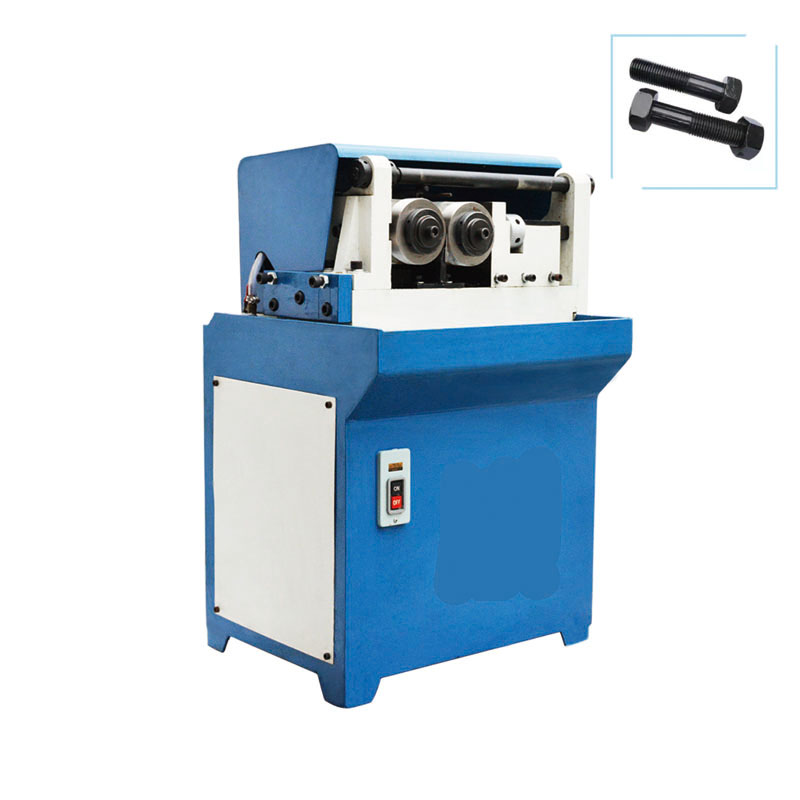

Machine Display
Slotted Screw Part Thread Rolling Machine:
Finished products:
Product Display Video
Slotted Screw Part Thread Rolling Machine video.
Related Products
RONEN is a manufacture for producing Cold Forging Machines (Fastener) in China, could provide Slotted Screw Part Thread Rolling Machine, screw part forming machine, nut former, screw threading machine, screen sorting machine, nut screw tapping machine, bolt cold heading machine etc.
Certifications
Slotted Screw Part Thread Rolling Machine certificates.
FAQ
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
