RONEN is one of the famous China Cold Forming Machines (Fastener) manufacturers. Our factory specializes in manufacturing of Pop Rivet Rivet Cold Heading Machine. RONEN has the engineers in charge more than 20 years experience in design and product. We had exported to Europe, Asia, Africa, North America, South America, Oceania. Hope to build business relationship with you.
Pop Rivet Rivet Cold Heading Machine advantages:
1.This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mold form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.This model is especially for semi-hollow rivet making.
2.The machine apply to manufacturing of semi-hollow rivets.
Product Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |
Machine Details And Finished Products Display

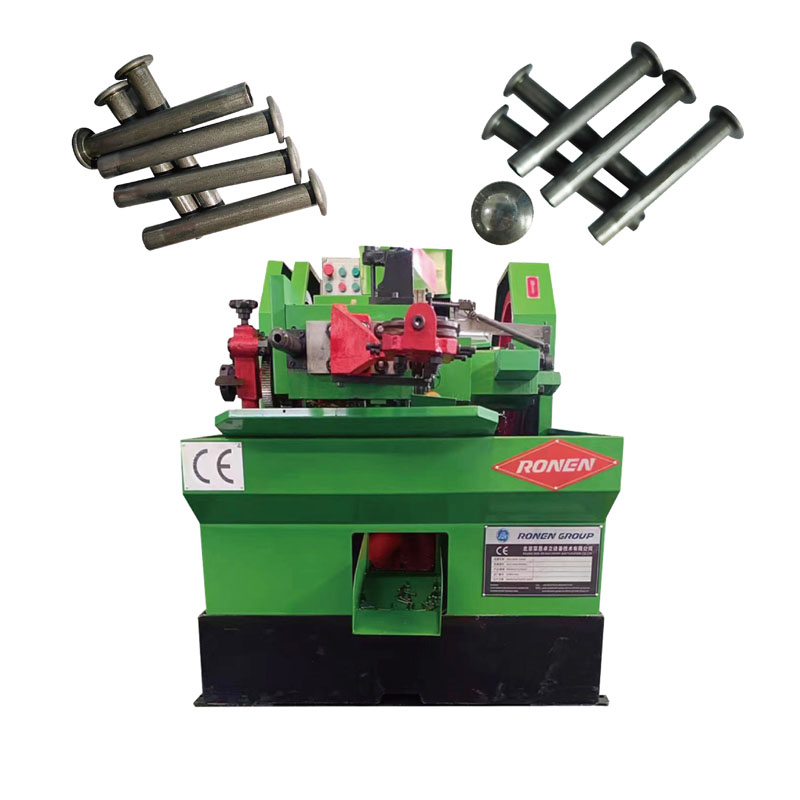

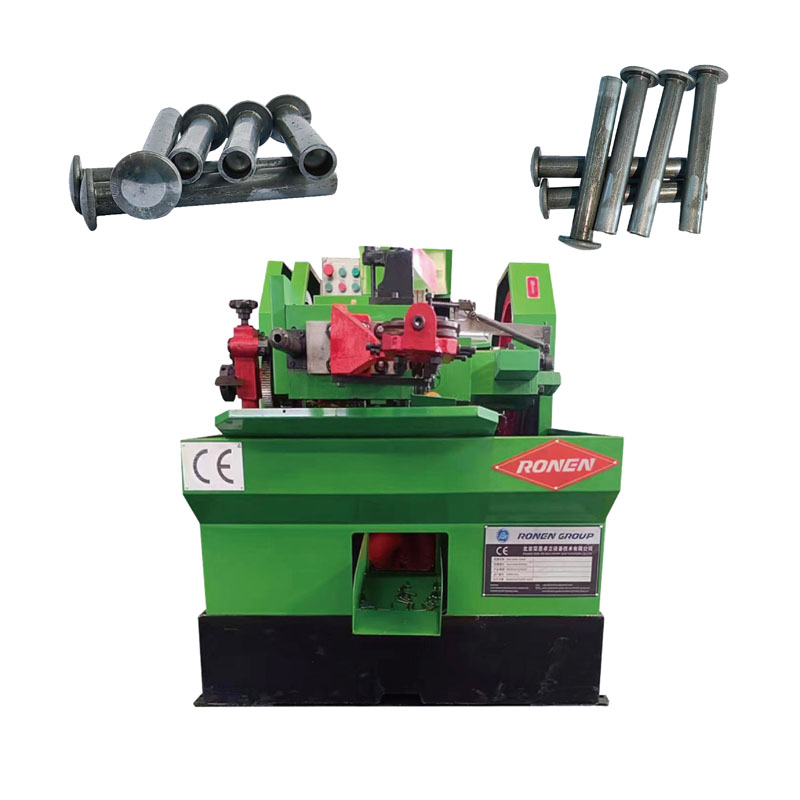

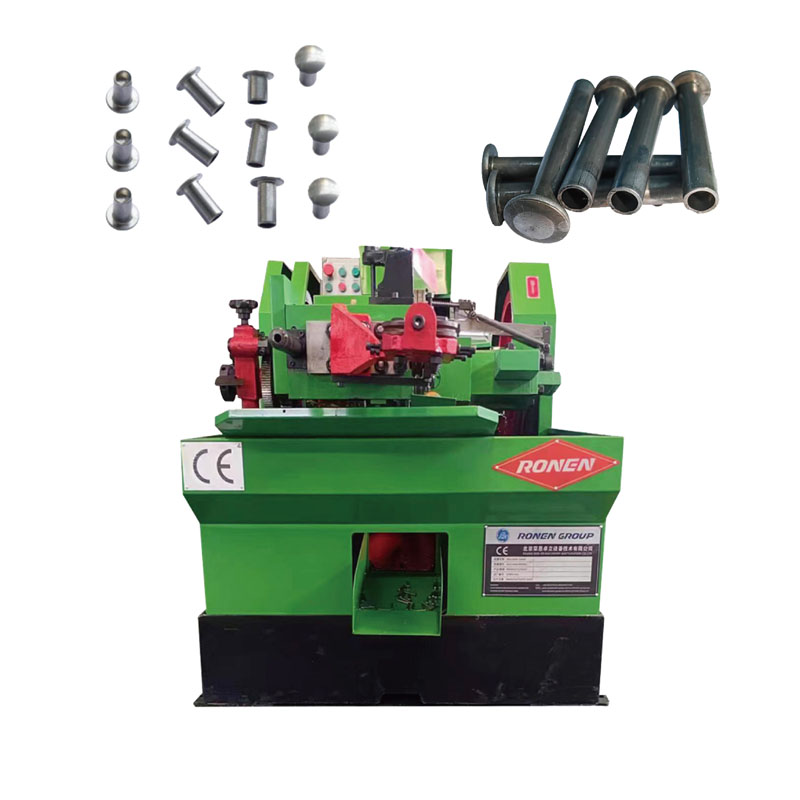

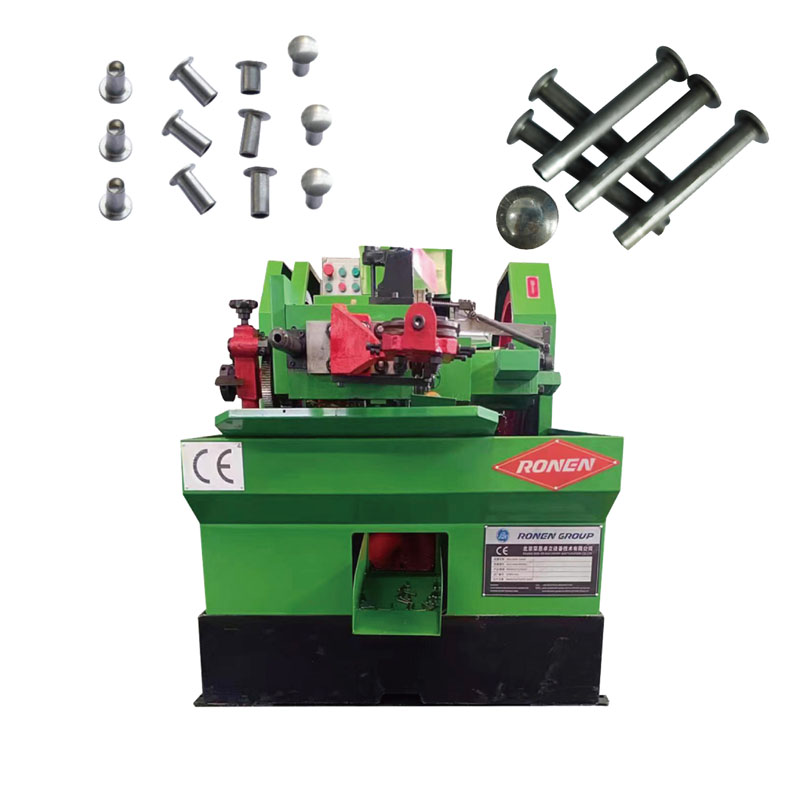

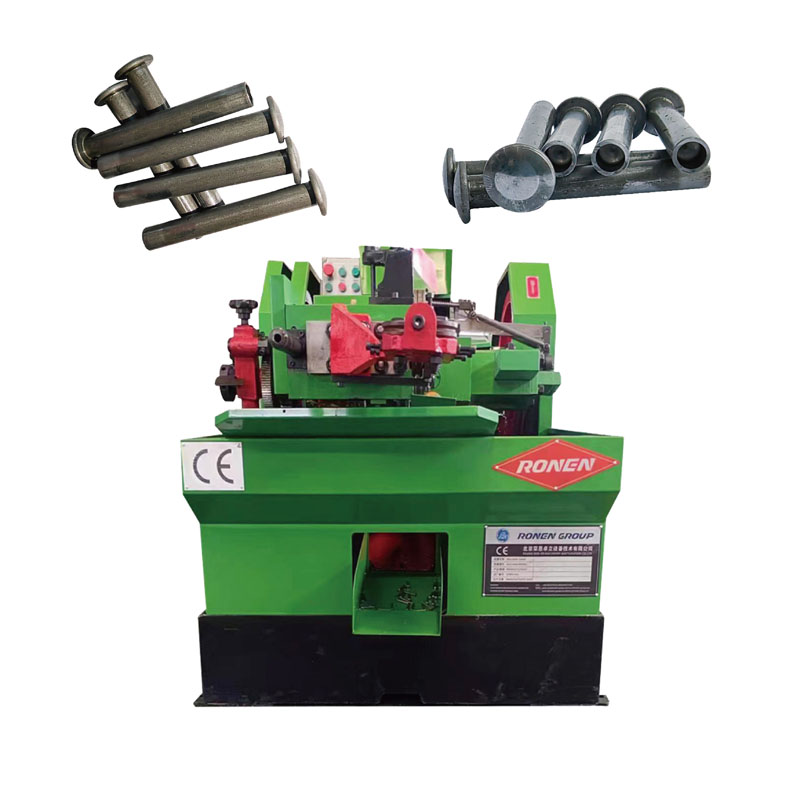

Pop Rivet Rivet Cold Heading Machine details :
The finished-products:
Product Function Display Video
Pop Rivet Rivet Cold Heading Machine working video show:
Packing And Delivery
Pop Rivet Rivet Cold Heading Machine : packing and shipping.
Certifications
Pop Rivet Rivet Cold Heading Machine : certificate.
FAQ
Q:Do you provide custom services?
A:Yes,we customize the machine according to your samples or drawings.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
Q: Do you provide any training to ensure that our users can operate the machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
Q: If it is beyond the warranty period, can we check the technical problems with you?
A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
