As the professional Cold Heading Machine manufacture, RONEN would like to provide you Metallurgy Nut Part Forming Machine. RONEN will offer you the best after-sale service. If you interested in Metallurgy Nut Part Forming Machine please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Metallurgy Nut Part Forming Machine specialties:
1.The design of the air pressure protection device protects the machine from overload and improves the service life of the mold.
2.The design of the closed protective cover greatly reduces the pollution of the hot oil mist to the working environment.
Product Parameter (Specification)
| Model |
Unit |
11B-6S |
14B-6S |
19B-6S |
24B-6S |
33B-6S |
41B-6S |
|
Forging Station |
NO. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across Flats of Nut |
mm |
5.5-12.7 |
10-17 |
14-22 |
17-26 |
24-33 |
30-41 |
|
Suitable Hex Nut |
DIN |
M3-M6 |
M6-M10 |
M8-M14 |
M10-M18 |
M16-M22 |
M20-M27 |
|
Cut-off Dia |
mm |
11 |
16 |
19 |
24 |
31 |
40 |
|
Dies Pitch |
mm |
50 |
60 |
80 |
100 |
140 |
165 |
|
Forging Power |
Ton |
60 |
90 |
135 |
230 |
360 |
450 |
|
Main Motor |
HP |
15 |
20 |
50 |
75 |
150 |
200 |
|
Lubrication Motor |
HP |
1.5 |
1.5 |
1.5 3 |
1.5 3 |
3 |
3 |
|
Installed Quantity |
SET |
(1) |
(2) |
(1) (1) |
(1) (1) |
(2) |
(2) |
|
Lubricant |
L |
700 |
1000 |
1200 |
1700 |
1900 |
2200 |
|
Approx Weight |
Ton |
4.5 |
8 |
14 |
25 |
45 |
72 |
Machine Details And Finished Products Display

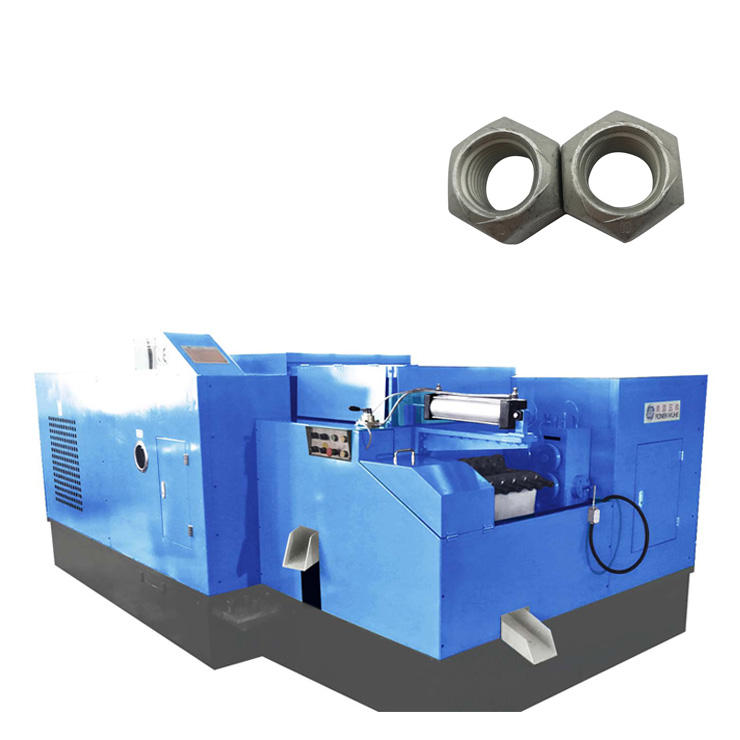

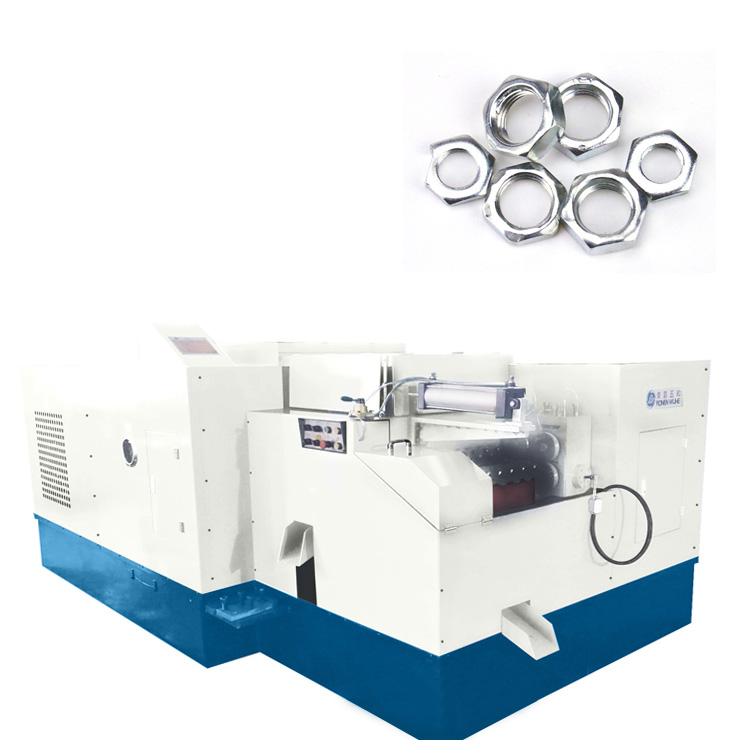

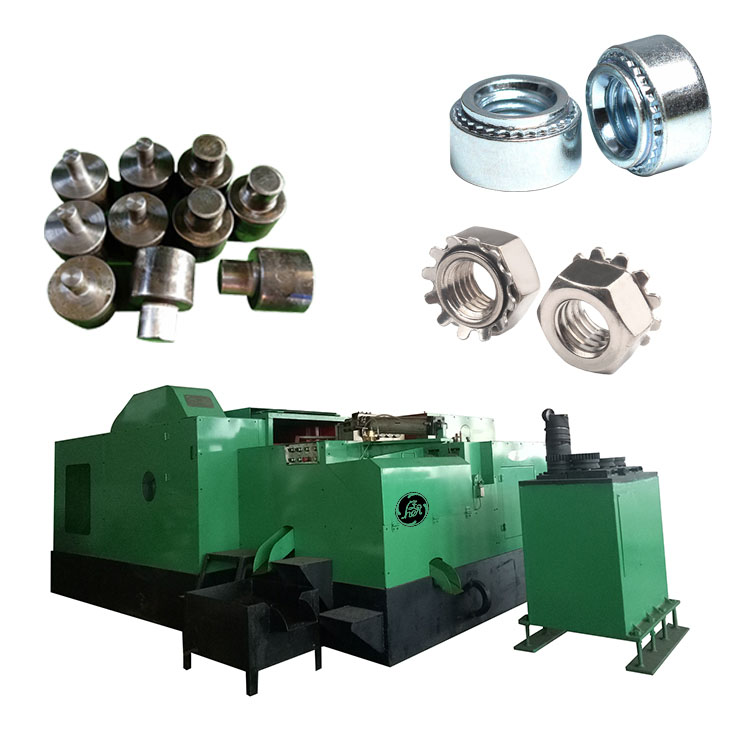

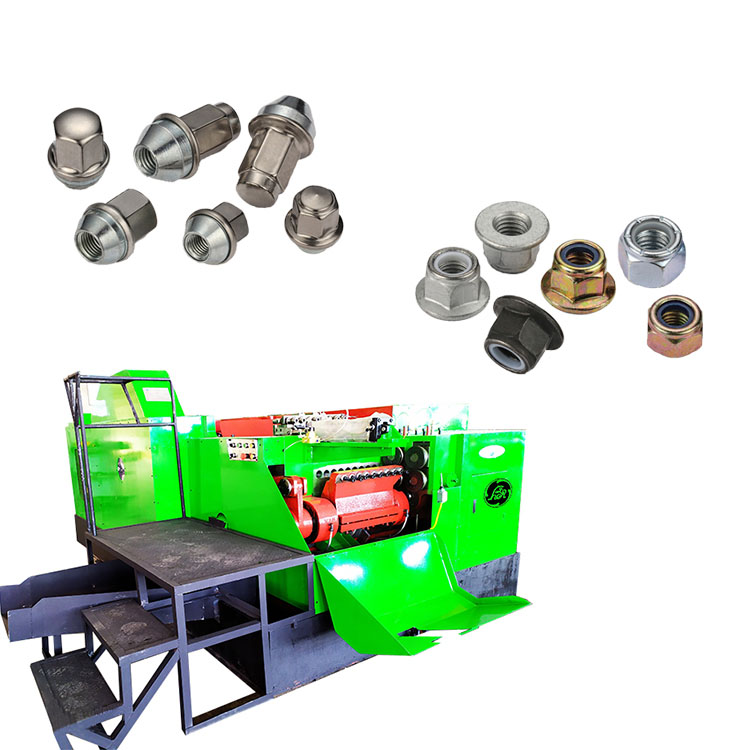

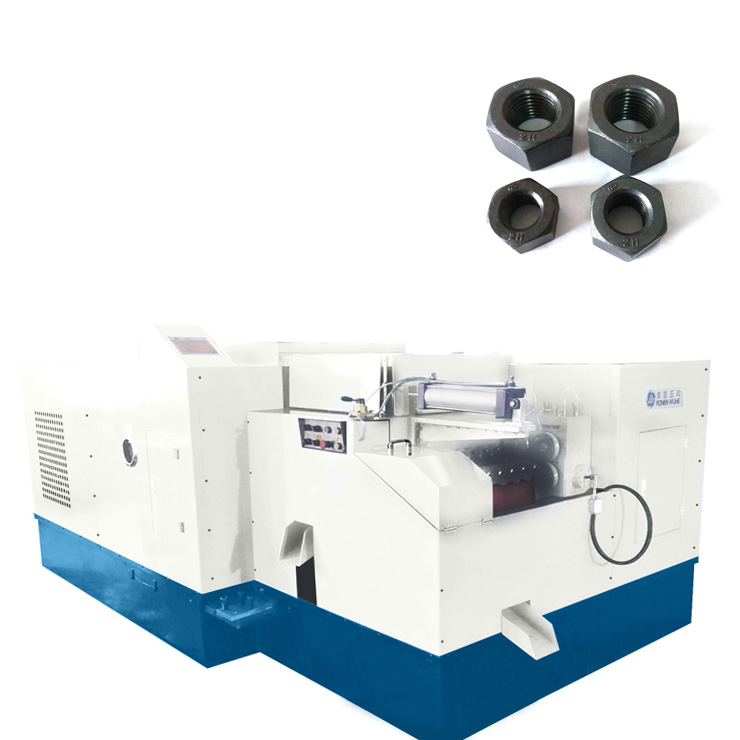

Metallurgy Nut Part Forming Machine display:
Finished products display:
Product Function Display Video
Metallurgy Nut Part Forming Machine working video.
5.Certifications
Metallurgy Nut Part Forming Machine certificate:
FAQ
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q: How long can you provide the warranty?
A: Our machine has a one-year warranty.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
Q: What can you buy from us?
A:Cold heading machine, Cold forging machine, Bolts nuts machine, Screws machine, Threading machine, etc.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
