RONEN is China manufacturer & supplier who produces Machine Screw Forming Machine. RONEN MACHINERY will offer you the best machine and best service. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.
Machine Screw Forming Machine features :
1.High speed lead traction, more accurate and faster.
2.High precision oil pump for machinery to provide more lasting power.
3.The linkage lever provides precise feeding for the head.
4.High precision straightening wheel,the product more accurate.
Product Parameter (Specification)
|
Model |
D12-70 |
D12-150 |
D12-200 |
D12-250 |
D12-300 |
D12-450 |
D16-180 |
D16-450 |
|
Max.Blank Diameter (mm) |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ8.0-16 |
Φ8.0-18 |
Φ8.0-18 |
|
Max.Blank Length (mm) |
70 |
150 |
200 |
250 |
300 |
450 |
180 |
450 |
|
Max.Cut- off Length (mm) |
90 |
170 |
220 |
270 |
320 |
480 |
210 |
480 |
|
Stroke (mm) |
120 |
190 |
250 |
300 |
330 |
550 |
240 |
550 |
|
Capacity (pcs/min) |
60-70 |
40-50 |
30-40 |
30-40 |
25-35 |
25-35 |
35-40 |
25-35 |
|
Main Die Diameter (mm) |
Φ80×120 |
Φ80×200 |
Φ88×260 |
Φ88×330 |
Φ88×360 |
Φ90×540 |
Φ98×220 |
Φ98×540 |
|
The Initial Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
The Precise Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
Cut-off Die Diameter (mm) |
Φ35×45 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ60×80 |
Φ60×80 |
|
Cutter Size (mm) |
16×50×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
20×60×125 |
20×70×125 |
|
Main Motor Power (kw) |
20HP/15kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/22kw |
25HP/22kw |
25HP/22k w |
|
Volume L*W*H/(mm) |
4.50×2.00×1.32 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
6.50×2.25×2.10 |
4.40×2.10×1.95 |
6.50×2.25×2/.10 |
|
Weight (kg) |
8700 |
14000 |
14300 |
15000 |
15850 |
20800 |
20800 |
21000 |
Machine Details And Finished Products Display
GOST R50403-1992 90° Screw Forging Machine’ purpose is to the selected such as carbon steel, stainless steel, aluminum, copper and other metal wire, with appropriate mould, according to the allowable pressure wire than, under the effect of crankshaft connecting rod drive the slider, automated, fast after the required size of the wire will be automatically shear, extrusion in the mould for needed fastener head type, stem diameter, facilitate thread rolling, or become a qualified rivet type fastener. The heading machine automatically processes, the wire into semi-finished products.

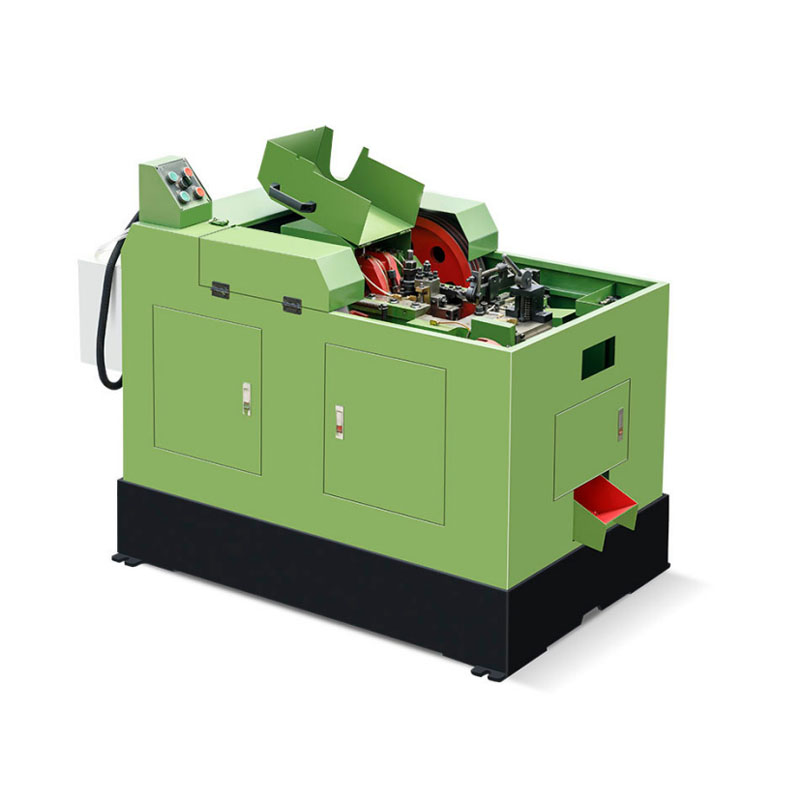

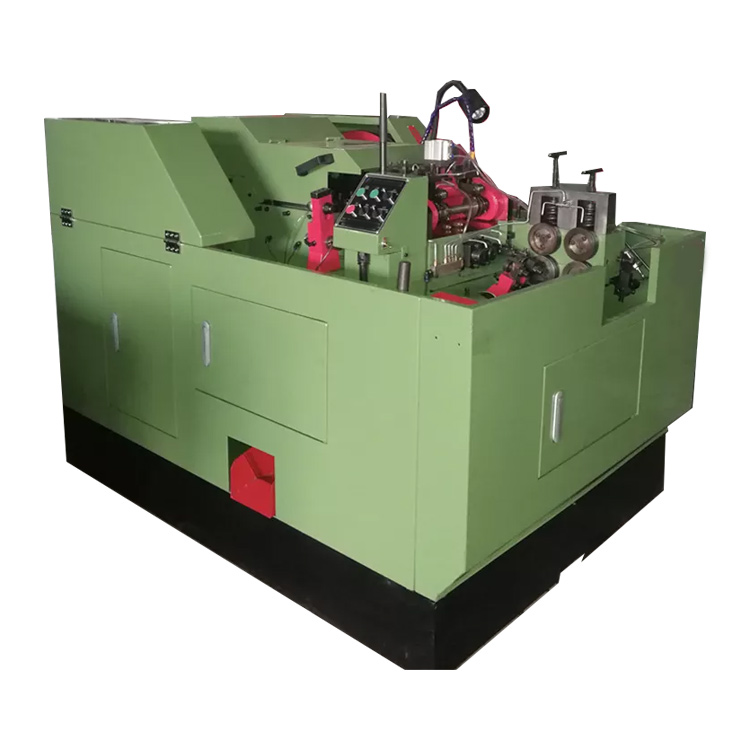

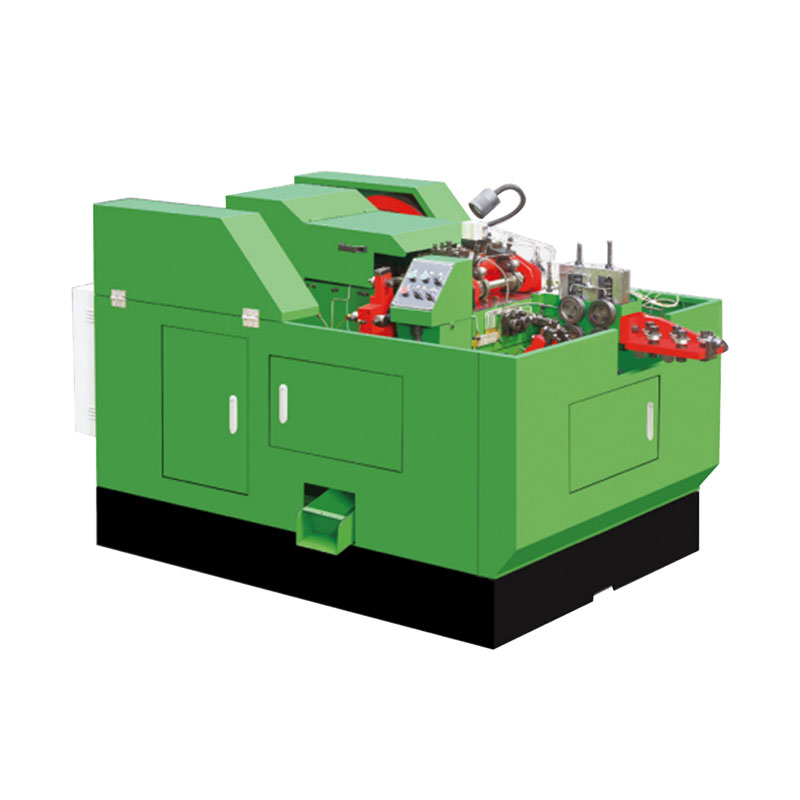

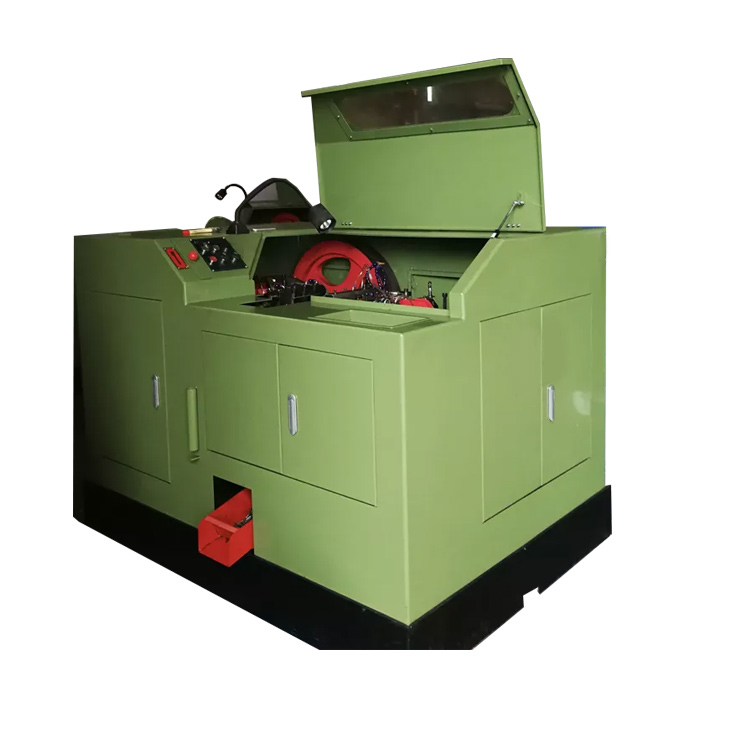

Machine Screw Forming Machine details:

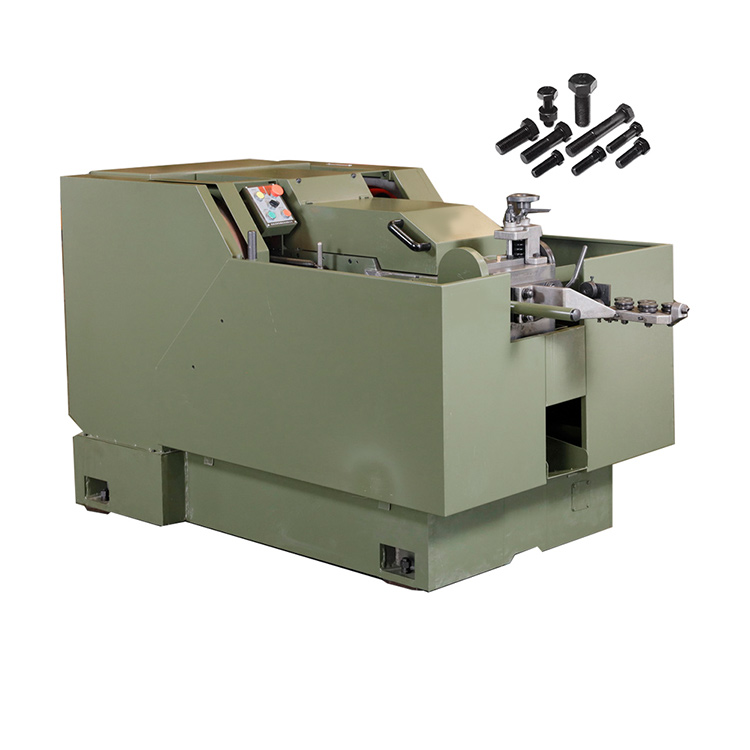

Machine Screw Forming Machine’s finished products:
Product Function Display Video
Machine Screw Forming Machine working show.
Certifications
Machine Screw Forming Machine :certificates.
FAQ
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q: How long can you provide the warranty?
A: Our machine has a one-year warranty.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
