As the professional manufacture, RONEN is willing to provide you Factory Directly Supply Light Industry Screw Making Machine. And RONEN will offer you the best after-sale service. If you interested in Light Industry Screw Making Machine, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Light Industry Screw Making Machine features :
1.The machine has the advantages of high speed, accurate precision, wide versatility, low cost and high efficiency.
2.The machine is specialized in producing all kinds of ordinary screw products.
Product Parameter (Specification)
|
Model |
D12-70 |
D12-150 |
D12-200 |
D12-250 |
D12-300 |
D12-450 |
D16-180 |
D16-450 |
|
Max.Blank Diameter (mm) |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ8.0-16 |
Φ8.0-18 |
Φ8.0-18 |
|
Max.Blank Length (mm) |
70 |
150 |
200 |
250 |
300 |
450 |
180 |
450 |
|
Max.Cut- off Length (mm) |
90 |
170 |
220 |
270 |
320 |
480 |
210 |
480 |
|
Stroke (mm) |
120 |
190 |
250 |
300 |
330 |
550 |
240 |
550 |
|
Capacity (pcs/min) |
60-70 |
40-50 |
30-40 |
30-40 |
25-35 |
25-35 |
35-40 |
25-35 |
|
Main Die Diameter (mm) |
Φ80×120 |
Φ80×200 |
Φ88×260 |
Φ88×330 |
Φ88×360 |
Φ90×540 |
Φ98×220 |
Φ98×540 |
|
The Initial Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
The Precise Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
Cut-off Die Diameter (mm) |
Φ35×45 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ60×80 |
Φ60×80 |
|
Cutter Size (mm) |
16×50×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
20×60×125 |
20×70×125 |
|
Main Motor Power (kw) |
20HP/15kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/22kw |
25HP/22kw |
25HP/22k w |
|
Volume L*W*H/(mm) |
4.50×2.00×1.32 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
6.50×2.25×2.10 |
4.40×2.10×1.95 |
6.50×2.25×2/.10 |
|
Weight (kg) |
8700 |
14000 |
14300 |
15000 |
15850 |
20800 |
20800 |
21000 |
Machine Details And Finished Products Display
Light Industry Screw Making Machine :This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

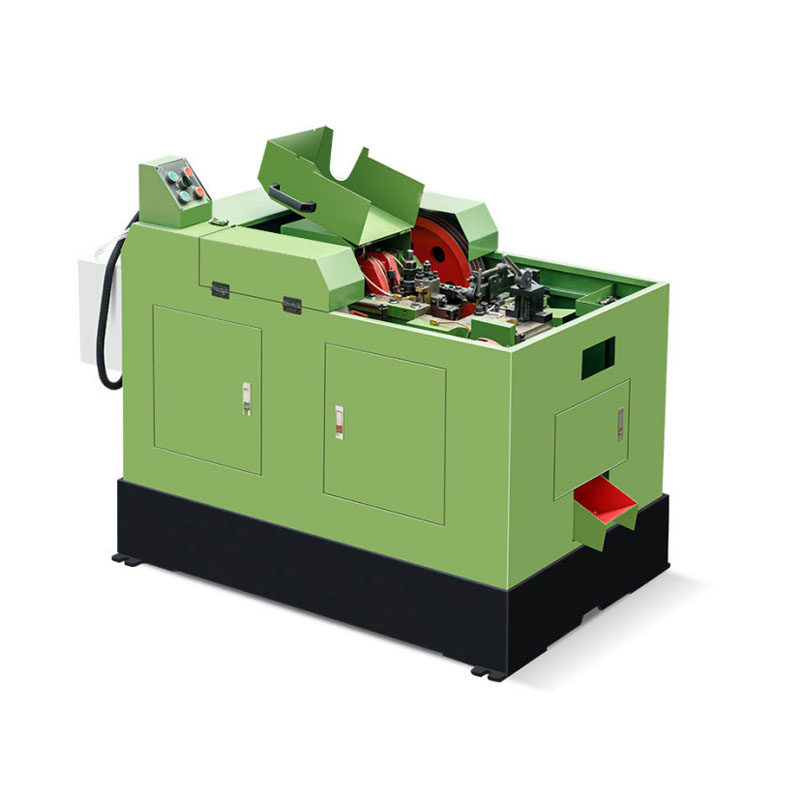

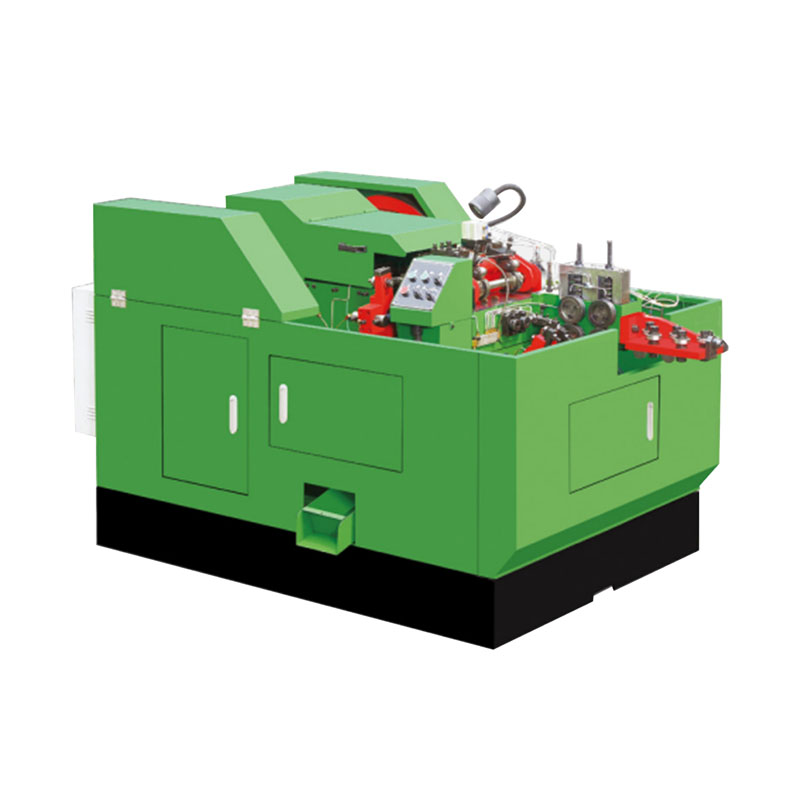

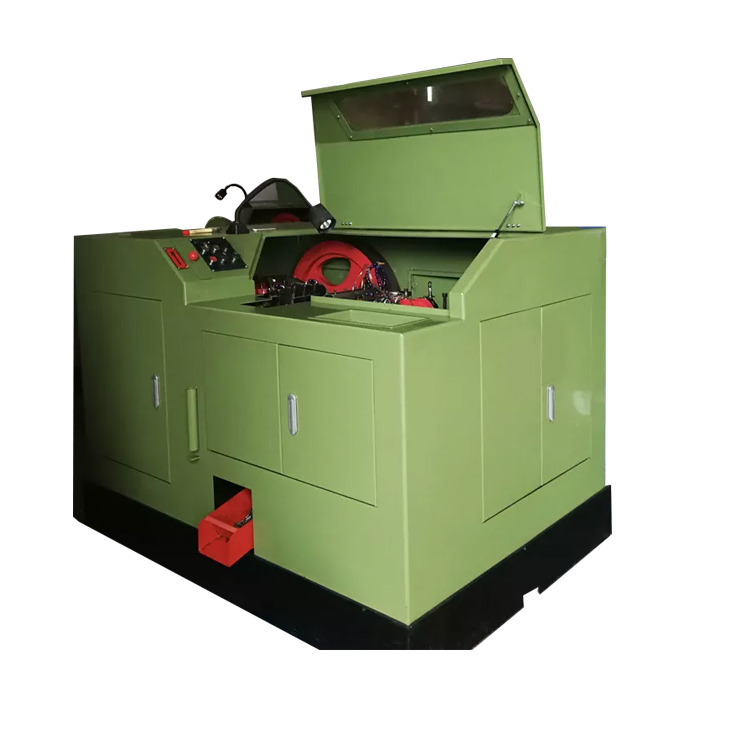

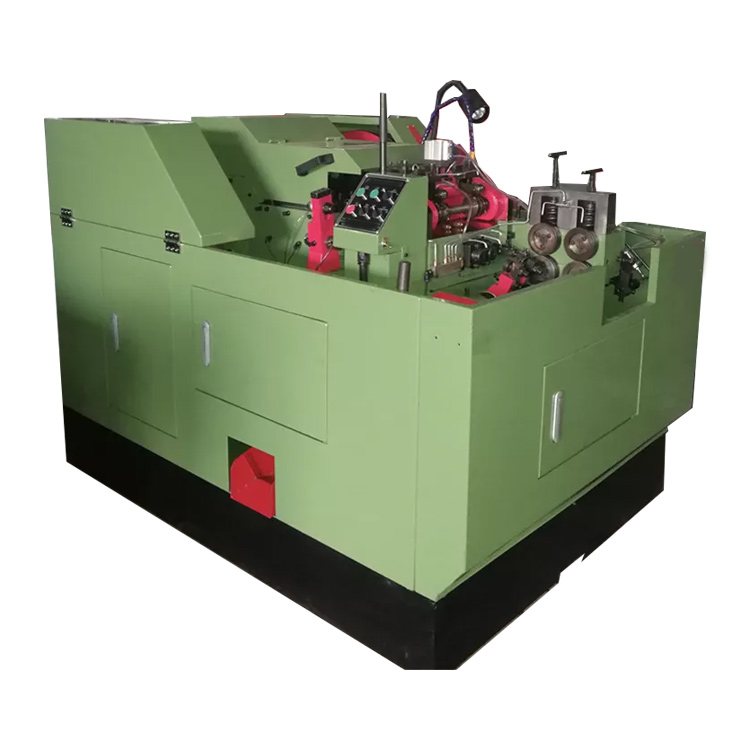

Light Industry Screw Making Machine details:

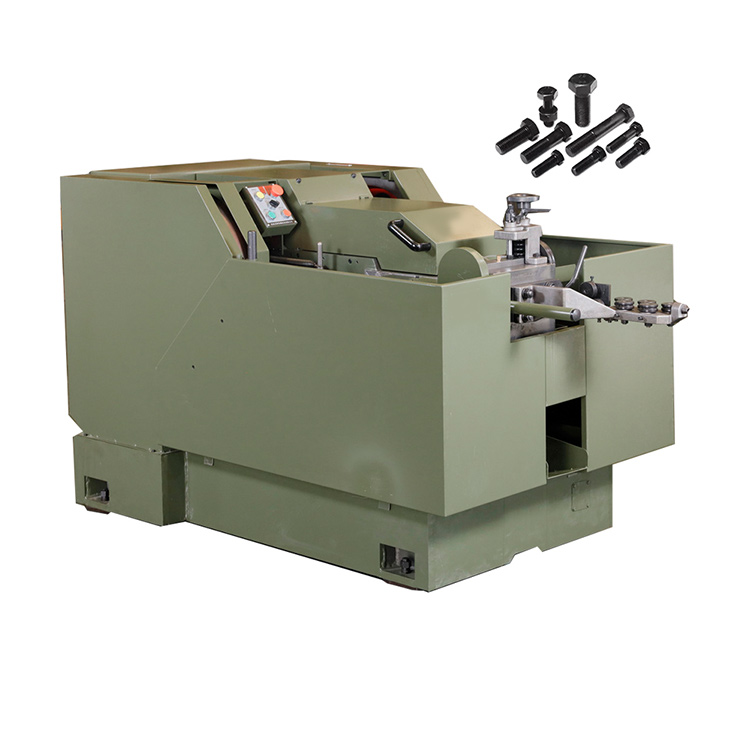

Light Industry Screw Making Machine’s finished products:
Product Function Display Video
Light Industry Screw Making Machine working show.
Certifications
Light Industry Screw Making Machine :certificates.
FAQ
Q: Can your machinery produce non-standard parts?
A: Yes, we can. We have the design and production engineers with more than 20 years of experience, we can customize according to your drawings or samples.
Q: What about delivery time?
A: Normally within 30 days,but it depends on your quantity and order time.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
Q:What can you buy from us?
A:Cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine, etc.
Q: If it is beyond the warranty period, can we check the technical problems with you?
A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
