As a professional Iron Screw Threading Machine manufacture, you can rest assured to buy High Performance Screw Threading Machine from our factory and RONEN MACHINERY will offer you the best machine and best service. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.
Iron Screw Threading Machine features:
1.Our machines adopt the forced oil feeding system, to make sure all components of the machine run in films of oil condition, and the machine could be durable for a long time.
2.RONEN MACHINERY threading machine can be made in PKO type.
Iron Screw Threading Machine Parameter (Specification)
|
Model |
3H30A/B |
4H45A/B |
4H55A/B |
6H55A/B |
6H70B |
6H105B |
6H40BL |
8H80B |
8H105B |
|
Diameter Range (mm) |
2-3.5 |
2.5-4 |
3-5 |
4-6 |
4-6 |
4-8 |
4-8 |
5-8 |
5-10 |
|
Blank Length Max (mm) |
30 |
45 |
55 |
50 |
70/85 |
105/125 |
40 |
80 |
105/125 |
|
Max Thread Length (mm) |
30 |
40 |
50 |
45 |
70 |
100 |
40 |
75 |
100 |
|
Capacity (pcs/min) |
230-270 |
180-230 |
160-200 |
120-160 |
120-160 |
120-140 |
60 |
90-120 |
90-120 |
|
Main Motor（KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Height Of Die Pocket (mm) |
25*30*70/80 |
25*45*76/90 |
25*55*85/100 |
25*50*110/125 |
25*70*110/125 |
25*105*110/125 |
40*40*235/260 |
30*80*150/170 |
30*105*150/170 |
|
Oil Motor(KW) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
|
Feed Motor(KW) |
0.37 |
0.4 |
0.5 |
0.37 |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
|
Packing Volume (cm) |
150*91*140 |
170*125*150 |
172*130*150 |
185*125*150 |
195*145*160 |
200*160*160 |
234*140*160 |
245*150*160 |
244*170*160 |
|
NW (KG) |
570 |
850 |
1170 |
1400 |
1500 |
1700 |
2500 |
3100 |
3200 |
|
Model |
8H150B |
10H105B |
12H150B |
12TH150B |
14H105B |
16H150B/C |
20H150B/C |
24H150C |
|
Diameter Range (mm) |
5-10 |
6-10 |
8-14 |
8-14 |
8-14 |
10-18 |
16-22 |
20-25 |
|
Blank Length Max (mm) |
150/200 |
105/125 |
150/200 |
150/200 |
105 |
150/250 |
150/250 |
150/250 |
|
Max Thread Length (mm) |
150 |
100 |
150 |
150 |
100 |
150 |
150 |
150 |
|
Capacity (pcs/min) |
90-110 |
90-110 |
75 |
75 |
75 |
45-50 |
35-45 |
42 |
|
Main Motor（KW) |
11 |
11 |
15 |
15 |
15 |
22 |
30 |
37 |
|
Height Of Die Pocket (mm) |
30*150*150/170 |
30*105*150/170 |
40*150*190/210 |
40*150*190/210 |
40*150*190/210 |
40*150*235/260 |
50*150*285/310 |
50*150*380/420 |
|
Oil Motor (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.36 |
0.36 |
0.36 |
|
Feed Motor (KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
2 |
4 |
|
Packing Volume (cm) |
245*190*170 |
250*160*170 |
315*195*170 |
304*200*185 |
315*195*170 |
363*215*200+ |
410*215*200+ |
420*225*224+ |
|
NW (KG) |
3300 |
3500 |
4400 |
5200 |
4600 |
12300 |
14700 |
19000 |
Machine Details And Finished Products Display

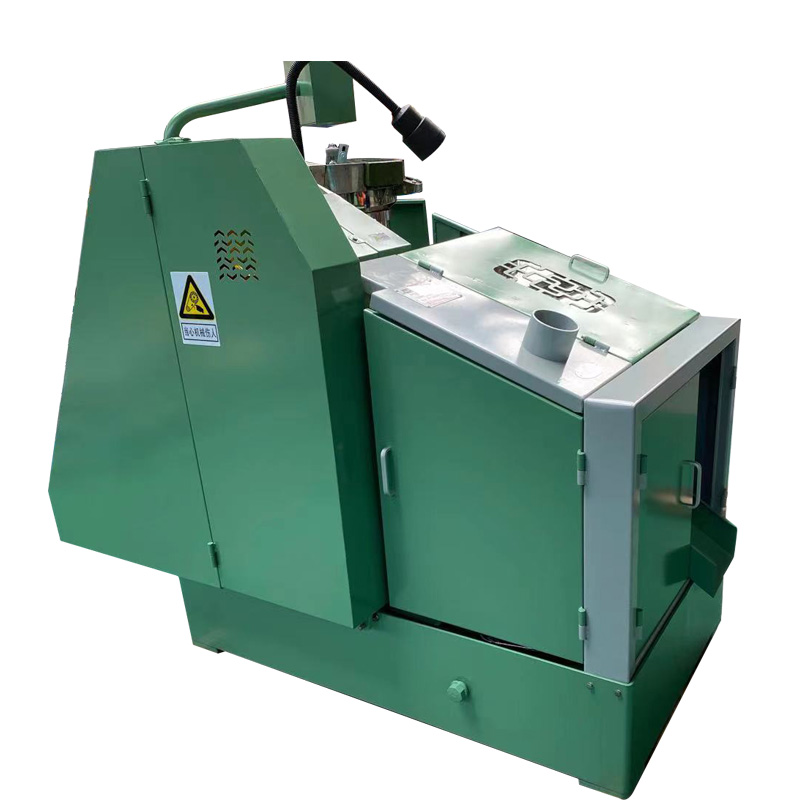

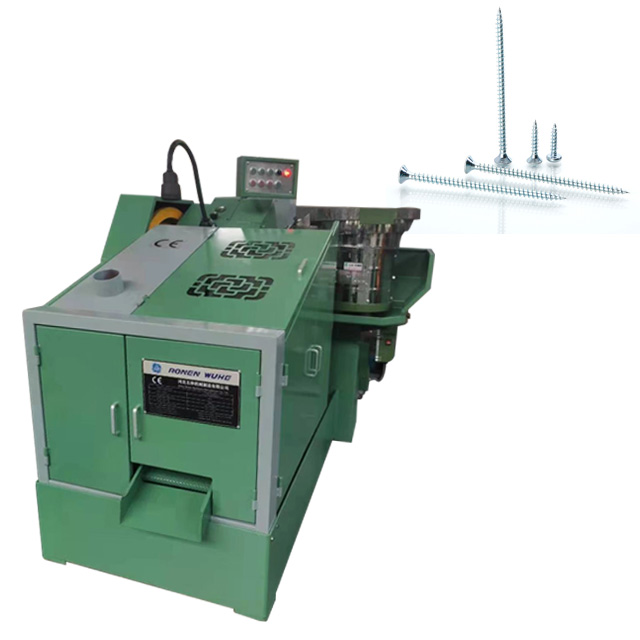

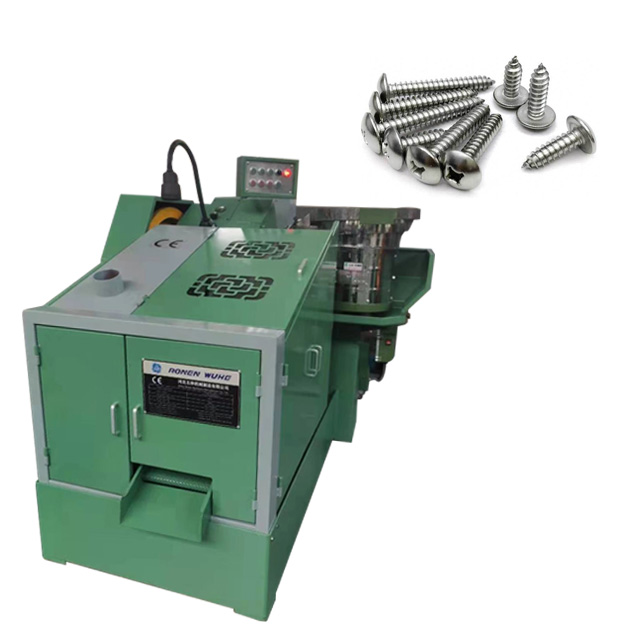

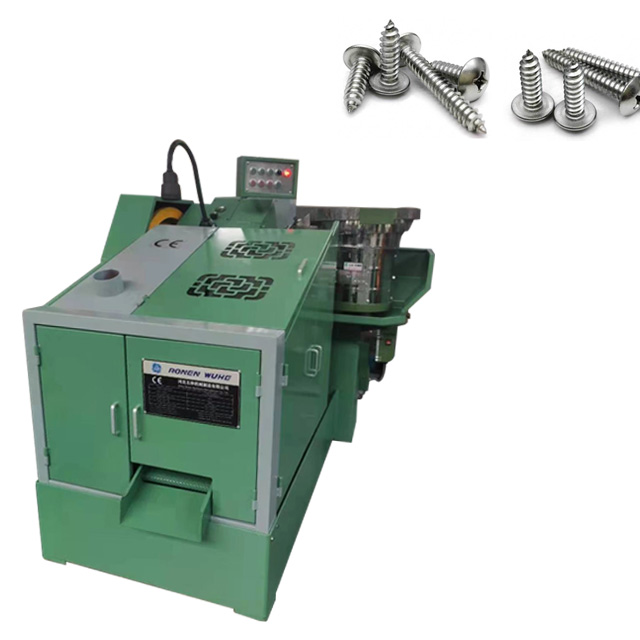

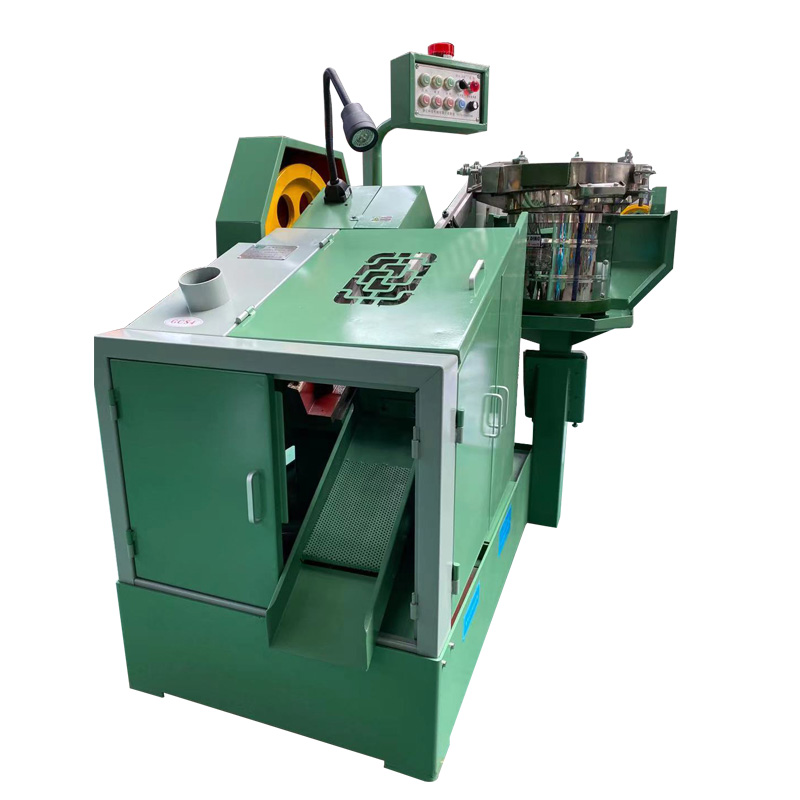

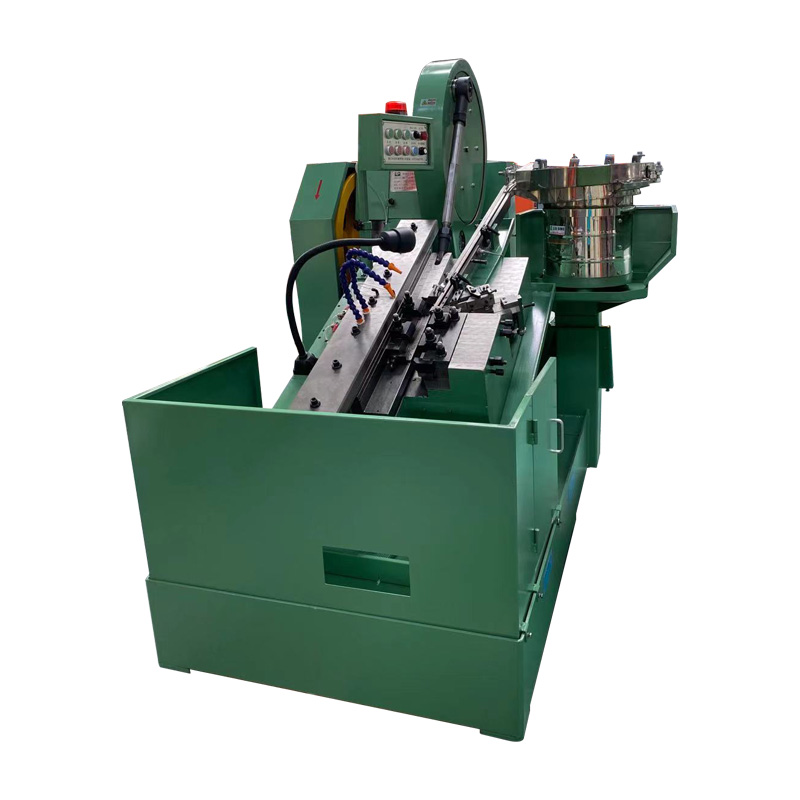

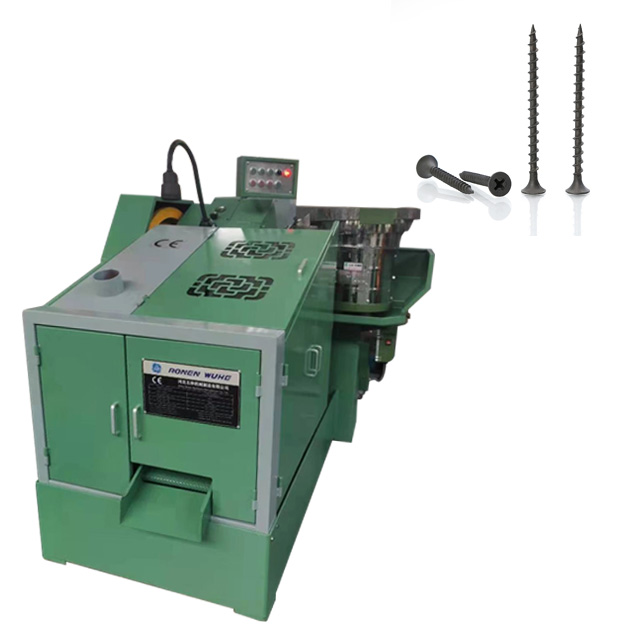

Iron Screw Threading Machine in RONEN workshop.
Finished products:
Product Function Display Video
Iron Screw Threading Machine working video.
Packing And Delivery
Iron Screw Threading Machine is packing and shipping.
Certifications
Certificates for Iron Screw Threading Machine.
FAQ
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
Q:What can you buy from us?
A:Cold heading machine, cold forging machine, bolts nuts machine, screws machine, threading machine and so on.
