RONEN MACHINERY is one of the famous China Screw Part Rolling Machines manufacturers. Our factory specializes in manufacturing of Iron Screw Part Thread Rolling Machine. RONEN has the engineers in charge more than 20 years experience in design and product. We had exported to Europe, Asia, Africa, North America, South America, Oceania. Hope to build business relationship with you.
Iron Screw Part Thread Rolling Machine characteristic:
1.Hydraulic system uses modular valves, small footprint, beautiful appearance, stable performance, ease of use and maintenance.
2.Spindle with double row needle roller bearings and cylindrical roller bearings combined to ensure the accuracy and stiffness requirements spindle.
3.Machine control system can easily choose manual, semi-automatic, automatic three ways to adjust working hours, using new digital dial code directly controlled roller system time and pause time.
4.Transmission system using multi-polar spindle gear box, to achieve smooth transmission, shifting easily.
2.Product Parameter (Specification)

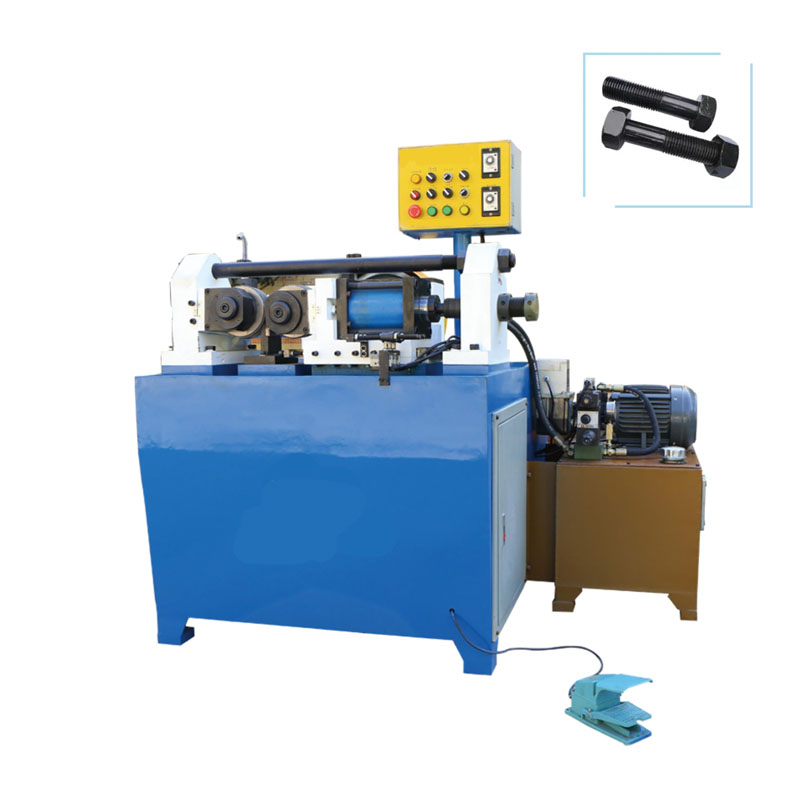

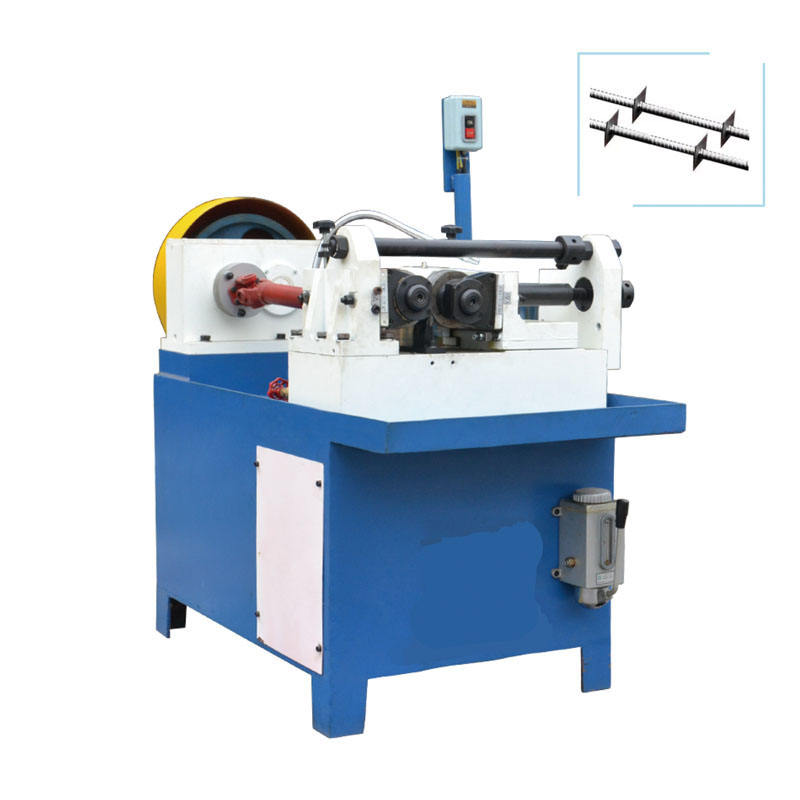

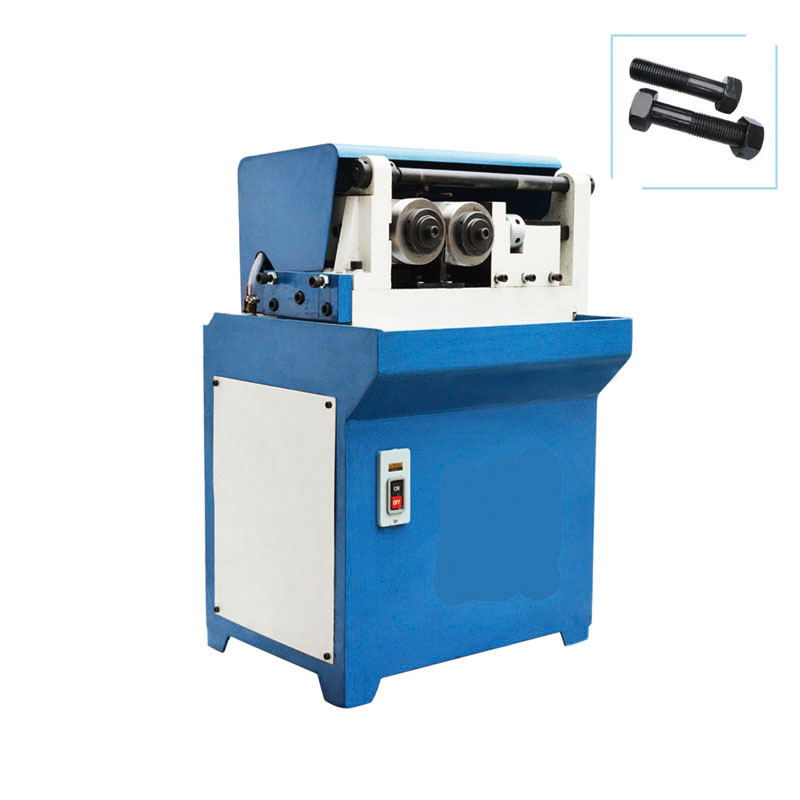

Two-Axles Hydraulic Iron Screw Part Thread Rolling Machine:
|
Model |
M4-M20 |
M2-M12 |
|
Rolling method |
Single or continuous piece of thread rolling |
Single or continuous piece of thread rolling |
|
Rolling workpiece diameter range |
ø3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Thread pitch range |
0.4-2.5P |
0.4-1.5P |
|
The maximum length of the thread |
Fixed or Thru-feeding |
Fixed or Thru-feeding |
|
Rotate speed |
30r/min |
40r/min |
|
Roller outer diameter |
ø95-ø120mm |
ø98mm |
|
Roller inner diameter (grove) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
Roller thickness |
60mm |
50mm |
|
Capacity |
80pcs/min |
80-220pcs/min |
|
Host motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulic motor |
2HP(1.5KW) |
2HP(1.5KW) |
|
Weight |
680 KG |
3600KG |
|
Mechanical volume |
1100*1000*1200mm |
1000*1450*750mm |

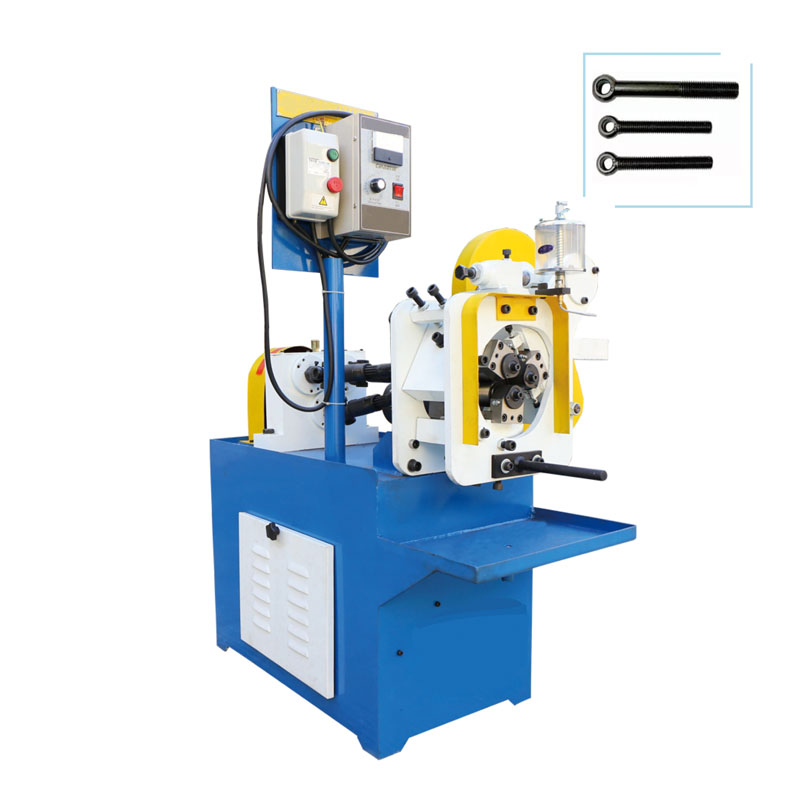

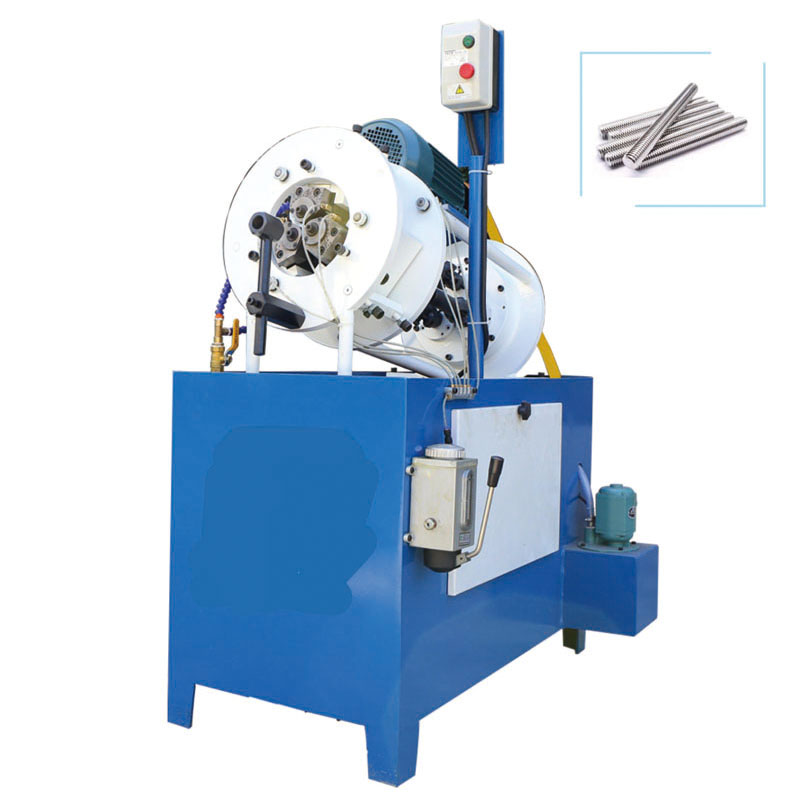

Three-Axles Cam Type Iron Screw Part Thread Rolling Machine:
|
Model |
M12-M35 |
M20-M60 |
|
Rolling method |
Single piece of thread rolling |
Single piece of thread rolling |
|
Rolling workpiece diameter range |
ø11.2--ø34.2mm |
ø19.2-ø59.2mm |
|
Thread pitch range |
0.5-2.5P |
0.8-3.5P |
|
The maximum length of the thread |
26mm |
26mm |
|
Rotate speed |
480r/min |
300r/min |
|
Roller outer diameter |
ø45-ø75mm |
ø52-ø115mm |
|
Roller inner diameter (grove) |
ø35mm(10×5) |
ø40mm(12×6) |
|
Roller thickness |
30mm |
30mm |
|
Capacity |
28pcs/min |
20pcs/min |
|
Host motor |
1.5Kw |
3Kw |
|
Hydraulic motor |
380v |
380v |
|
Weight |
220KG |
280KG |
|
Mechanical volume |
1000*850*1250mm |
1100*950*1250mm30mm |

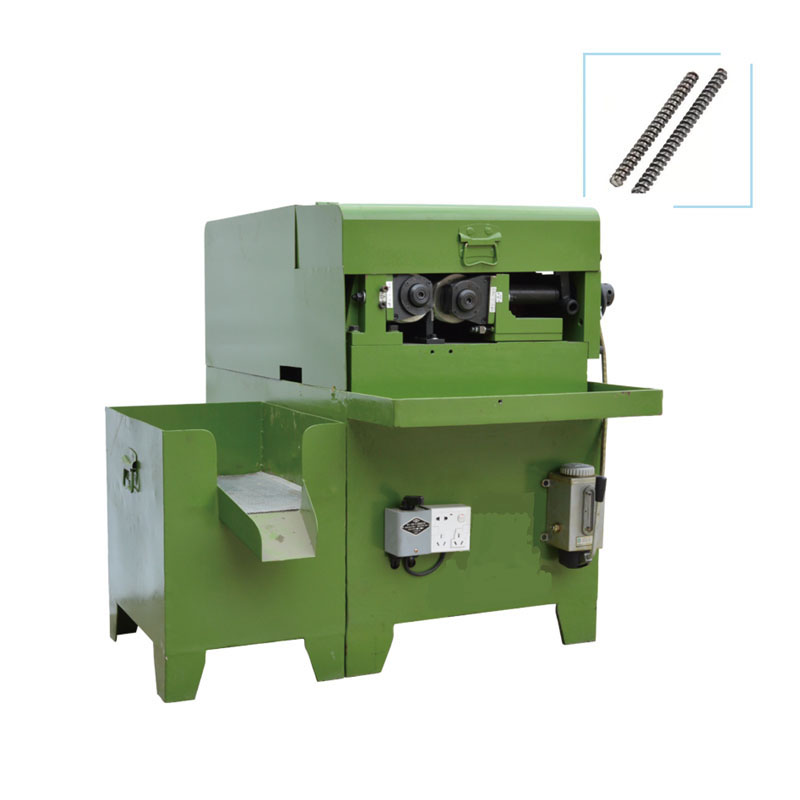

Three-Axles Thru-Feed Iron Screw Part Thread Rolling Machine:
|
Model |
Max. Thread Diameter (mm) |
Max. Thread Length (mm) |
Moving Dies Stationary Length (mm) (L*TH.*W) |
Motor (Kw) |
Capacity (pcs/min) |
Volume (L*W*H) (m) |
Weight (Kg) |
|
|
M6-70 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-200 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |
Machine Display
Iron Screw Part Thread Rolling Machine:
Finished products:
Product Display Video
Iron Screw Part Thread Rolling Machine video.
Related Products
RONEN MACHINERY is one of the top manufacturers in producing Cold Heading Machines (Fastener) in China, could offer Iron Screw Part Thread Rolling Machine, screw part forming machine, nut making machine, screw threading machine, screen sorting machine, tapping machine, bolt making machine, etc.
Certifications
Iron Screw Part Thread Rolling Machine certificates.
FAQ
Q:Do you provide custom services?
A:Yes,we customize the machine according to your samples or drawings.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
Q: What are your payment terms?
A: We support T/T, L/C, etc. TT, 30% in advance, and the balance 70% before shipment.
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q: Do you provide any training to ensure that our users can operate the machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
