As a professional High Performance Screw Threading Machine manufacture, you can rest assured to buy High Performance Screw Threading Machine from our factory and RONEN MACHINERY will offer you the best machine and best service. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.
High Performance Screw Threading Machine advantages:
1.Single rail skid way design makes the machine runs at high speed, and the production efficiency is also high.
2.The key components of our machines are imported from Taiwan, Japan, and Germany, which are all complied with the all high-precision, high-hardness, high-abrasion resistant requirements.
3. RONEN MACHINERY threading machine can be made in PKO type.
High Performance Screw Threading Machine Parameter (Specification)
|
Model |
3H30A/B |
4H45A/B |
4H55A/B |
6H55A/B |
6H70B |
6H105B |
6H40BL |
8H80B |
8H105B |
|
Diameter Range (mm) |
2-3.5 |
2.5-4 |
3-5 |
4-6 |
4-6 |
4-8 |
4-8 |
5-8 |
5-10 |
|
Blank Length Max (mm) |
30 |
45 |
55 |
50 |
70/85 |
105/125 |
40 |
80 |
105/125 |
|
Max Thread Length (mm) |
30 |
40 |
50 |
45 |
70 |
100 |
40 |
75 |
100 |
|
Capacity (pcs/min) |
230-270 |
180-230 |
160-200 |
120-160 |
120-160 |
120-140 |
60 |
90-120 |
90-120 |
|
Main Motor（KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Height Of Die Pocket (mm) |
25*30*70/80 |
25*45*76/90 |
25*55*85/100 |
25*50*110/125 |
25*70*110/125 |
25*105*110/125 |
40*40*235/260 |
30*80*150/170 |
30*105*150/170 |
|
Oil Motor(KW) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
|
Feed Motor(KW) |
0.37 |
0.4 |
0.5 |
0.37 |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
|
Packing Volume (cm) |
150*91*140 |
170*125*150 |
172*130*150 |
185*125*150 |
195*145*160 |
200*160*160 |
234*140*160 |
245*150*160 |
244*170*160 |
|
NW (KG) |
570 |
850 |
1170 |
1400 |
1500 |
1700 |
2500 |
3100 |
3200 |
|
Model |
8H150B |
10H105B |
12H150B |
12TH150B |
14H105B |
16H150B/C |
20H150B/C |
24H150C |
|
Diameter Range (mm) |
5-10 |
6-10 |
8-14 |
8-14 |
8-14 |
10-18 |
16-22 |
20-25 |
|
Blank Length Max (mm) |
150/200 |
105/125 |
150/200 |
150/200 |
105 |
150/250 |
150/250 |
150/250 |
|
Max Thread Length (mm) |
150 |
100 |
150 |
150 |
100 |
150 |
150 |
150 |
|
Capacity (pcs/min) |
90-110 |
90-110 |
75 |
75 |
75 |
45-50 |
35-45 |
42 |
|
Main Motor（KW) |
11 |
11 |
15 |
15 |
15 |
22 |
30 |
37 |
|
Height Of Die Pocket (mm) |
30*150*150/170 |
30*105*150/170 |
40*150*190/210 |
40*150*190/210 |
40*150*190/210 |
40*150*235/260 |
50*150*285/310 |
50*150*380/420 |
|
Oil Motor (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.36 |
0.36 |
0.36 |
|
Feed Motor (KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
2 |
4 |
|
Packing Volume (cm) |
245*190*170 |
250*160*170 |
315*195*170 |
304*200*185 |
315*195*170 |
363*215*200+ |
410*215*200+ |
420*225*224+ |
|
NW (KG) |
3300 |
3500 |
4400 |
5200 |
4600 |
12300 |
14700 |
19000 |

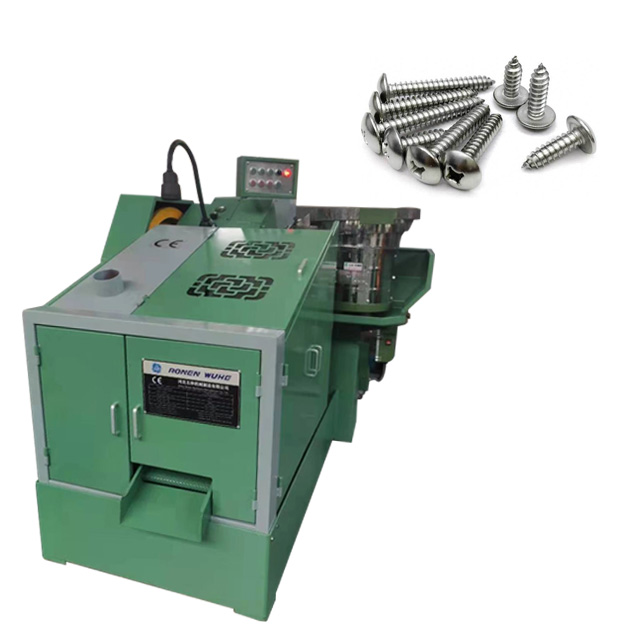

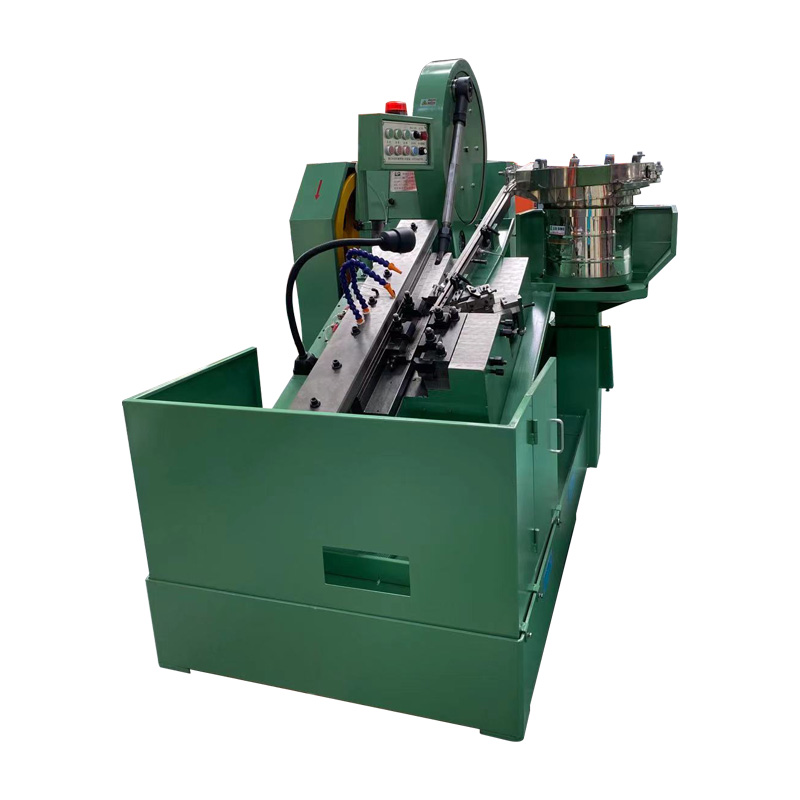

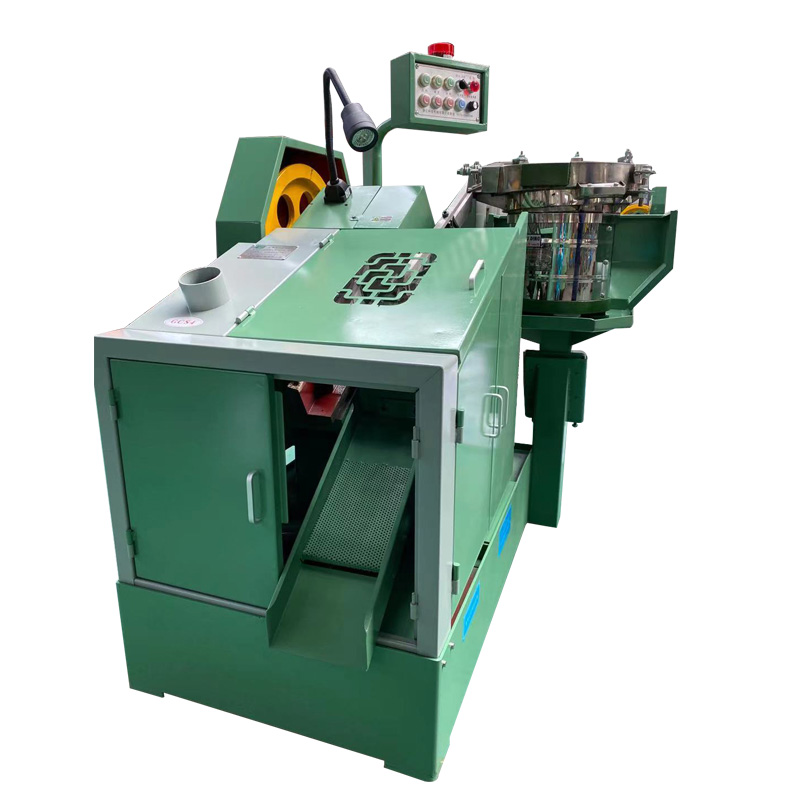

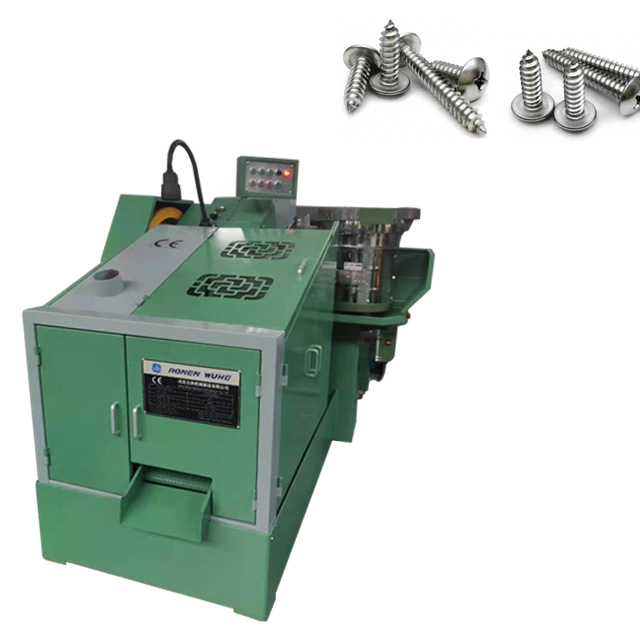

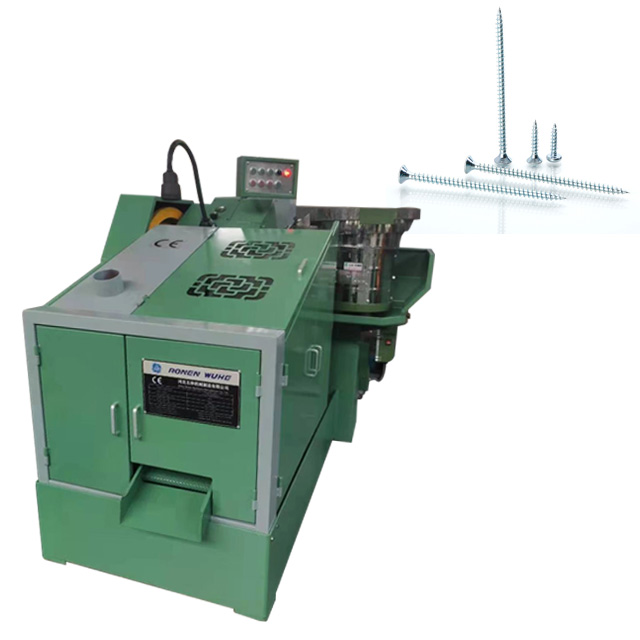

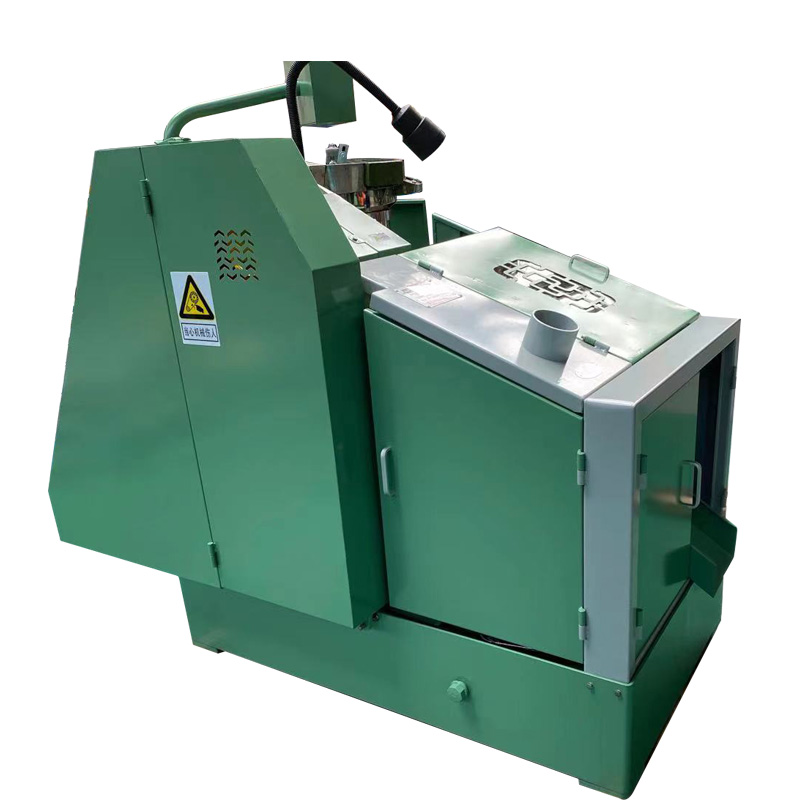

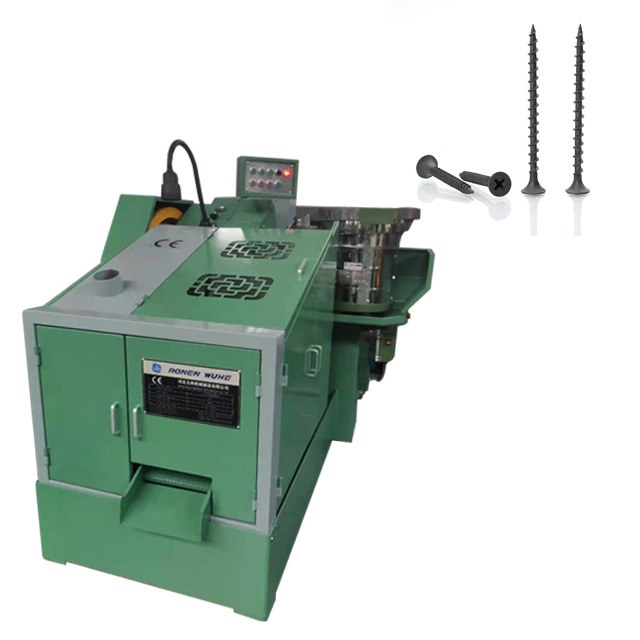

Machine Details And Finished Products Display
High Performance Screw Threading Machine Max. speed is about 300pcs/min in stable running. RONEN MACHINERY has the engineers in charge more than 20 years experience in design and products. All RONEN MACHINERY machines has the high level in machine production and running.
Finished products:
Product Function Display Video
High Performance Screw Threading Machine working video.
Packing And Delivery
High Performance Screw Threading Machine is packing and shipping.
Certifications
Certificates for High Performance Screw Threading Machine.
FAQ
Q:Do you have CE certification?
A: Yes, we have CE certification.
Q.What kind of package do you offer?
A.Normally in FCL shipping, if the customer needs, we can customize wooden cases , pallet packing or other suitable packaging.
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection.
