RONEN MACHINERY is one of the famous China Screw Cold Heading Machine manufacturers and suppliers. Our factory specializes in manufacturing of China Quality Hex Flange Screw Cold Heading Machine. RONEN has the engineers in charge more than 20 years experience in design and product. We had exported to Europe, Asia, Africa, North America, South America, Oceania. Hope to build business relationship with you.
Hex Flange Screw Cold Heading Machine features :
1.The linkage lever provides precise feeding for the head.
2.High precision straightening wheel,the product more accurate.
3.High speed lead traction, more accurate and faster.
4.High precision oil pump for machinery to provide more lasting power.
Product Parameter (Specification)
|
Model |
D12-70 |
D12-150 |
D12-200 |
D12-250 |
D12-300 |
D12-450 |
D16-180 |
D16-450 |
|
Max.Blank Diameter (mm) |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ7.0-15 |
Φ8.0-16 |
Φ8.0-18 |
Φ8.0-18 |
|
Max.Blank Length (mm) |
70 |
150 |
200 |
250 |
300 |
450 |
180 |
450 |
|
Max.Cut- off Length (mm) |
90 |
170 |
220 |
270 |
320 |
480 |
210 |
480 |
|
Stroke (mm) |
120 |
190 |
250 |
300 |
330 |
550 |
240 |
550 |
|
Capacity (pcs/min) |
60-70 |
40-50 |
30-40 |
30-40 |
25-35 |
25-35 |
35-40 |
25-35 |
|
Main Die Diameter (mm) |
Φ80×120 |
Φ80×200 |
Φ88×260 |
Φ88×330 |
Φ88×360 |
Φ90×540 |
Φ98×220 |
Φ98×540 |
|
The Initial Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
The Precise Punch Die Diameter (mm) |
Φ55×120 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×180 |
Φ60×270 |
Φ65×180 |
Φ60×270 |
|
Cut-off Die Diameter (mm) |
Φ35×45 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ45×60 |
Φ60×80 |
Φ60×80 |
|
Cutter Size (mm) |
16×50×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
18×60×125 |
20×60×125 |
20×70×125 |
|
Main Motor Power (kw) |
20HP/15kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/18.5kw |
25HP/22kw |
25HP/22kw |
25HP/22k w |
|
Volume L*W*H/(mm) |
4.50×2.00×1.32 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
5.20×1.90×1.80 |
6.50×2.25×2.10 |
4.40×2.10×1.95 |
6.50×2.25×2/.10 |
|
Weight (kg) |
8700 |
14000 |
14300 |
15000 |
15850 |
20800 |
20800 |
21000 |
Machine Details And Finished Products Display
Hex Flange Screw Cold Heading Machine adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Completed Feeding, straightening, cutting material, forming, discharging by one machine.

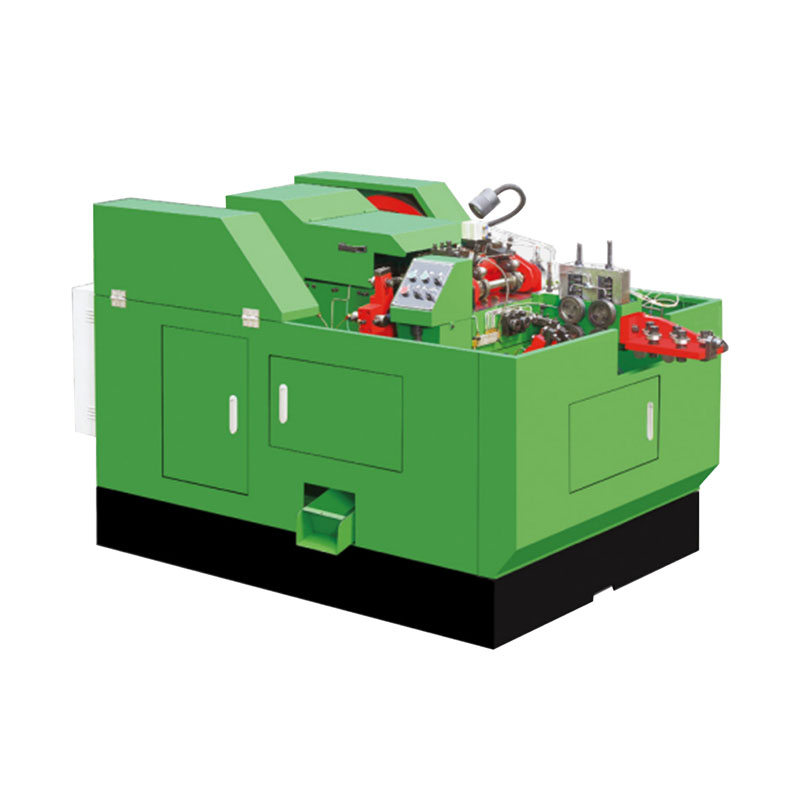

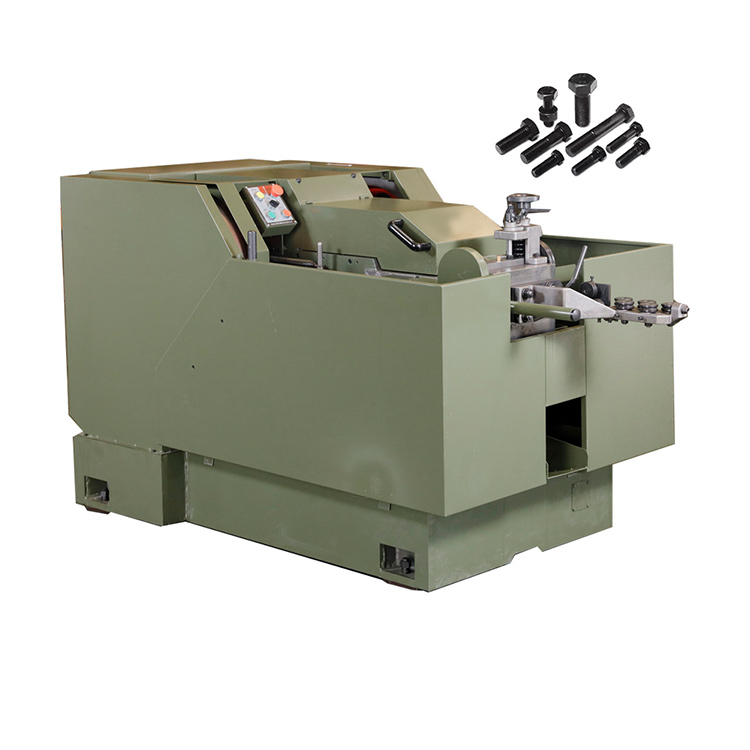

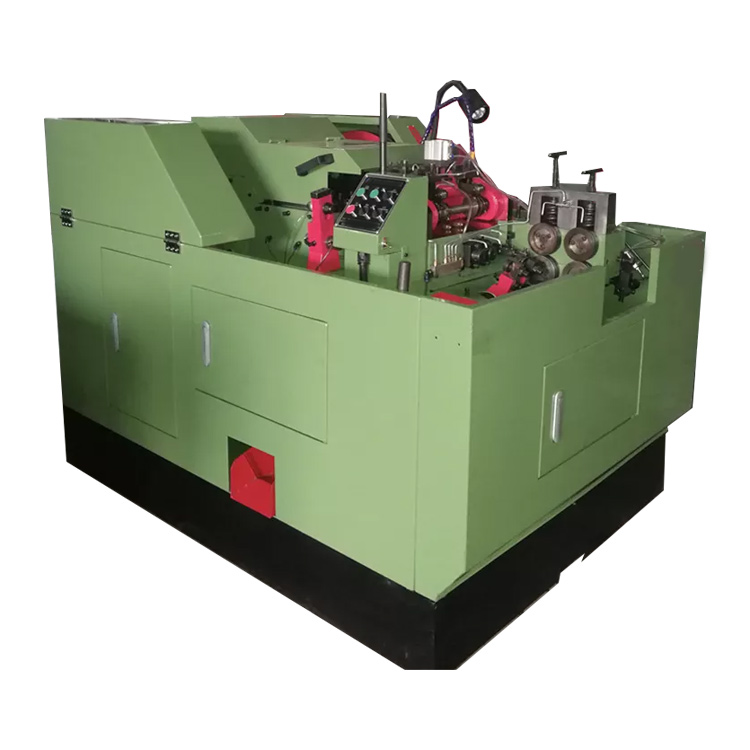

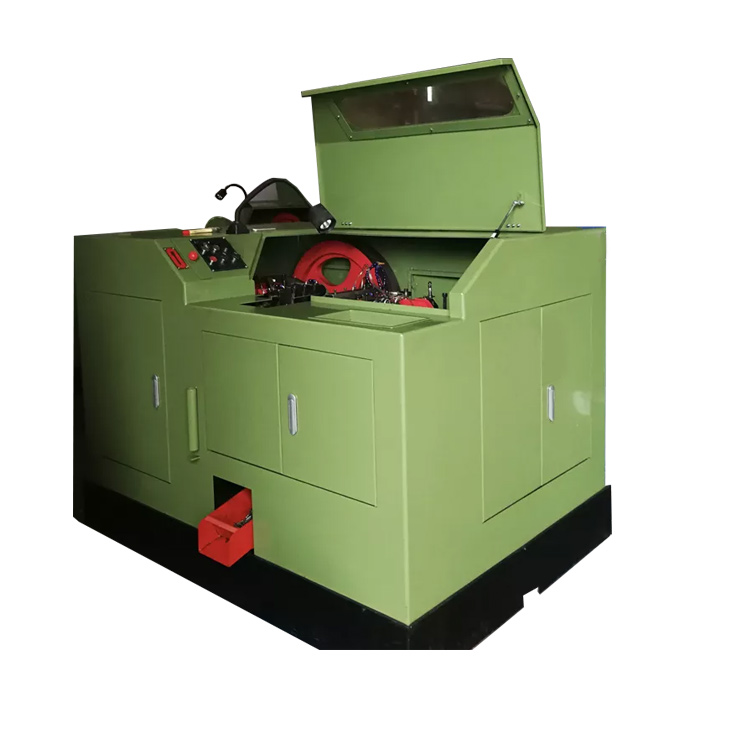

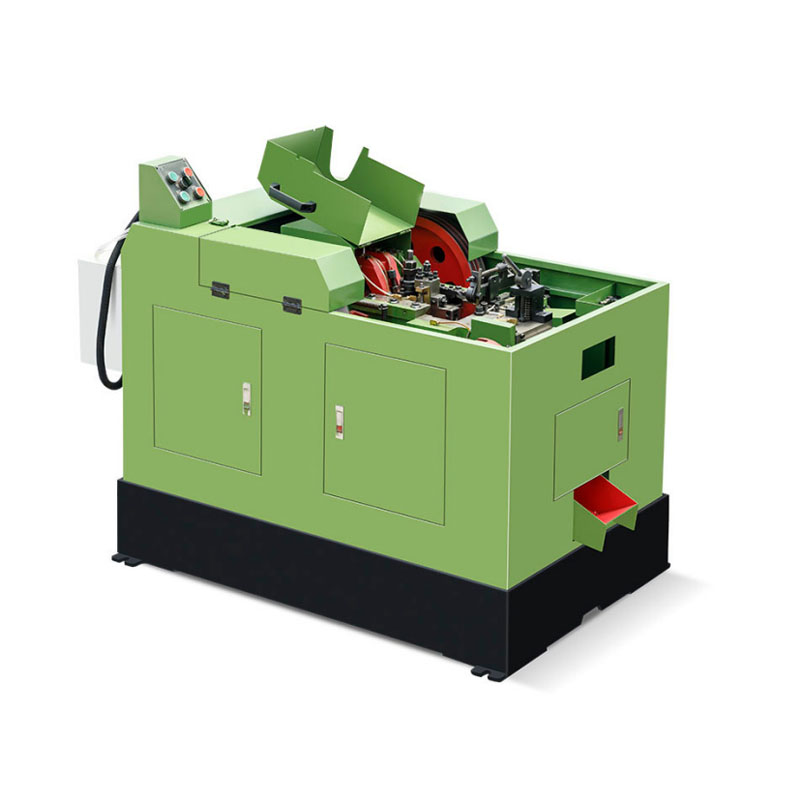

Hex Flange Screw Cold Heading Machine details:
Hex Flange Screw Cold Heading Machine’s finished products:
Product Function Display Video
Hex Flange Screw Cold Heading Machine working show.
Certifications
Hex Flange Screw Cold Heading Machine :certificates.
FAQ
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: Do you provide any training to ensure that our users can operate the machine well?
A: We will provide detailed video and instructions for the machine. We can also provide training service. The machine is easy in operation(Before we arrange the shipping, we must finished the commissioning, so that you can use the machine when you received.), and RONEN MACHINERY also will provide the guide video and the service in using the machine online. By the way, we accept that you come to our factory or we go to your factories to commissioning the machine.
Q:What can you buy from us?
A:Cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine, etc.
Q: If it is beyond the warranty period, can we check the technical problems with you?
A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
