Energy Bolt Part Cold Forging Machine characteristics:

1.With a compact structure and stable performance.
2.It is widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation, steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.

Product Parameter (Specification)

3 station Energy Bolt Part Cold Forging Machine:

Specification	Unit	RNBF-63S	RNBF-83L	RNBF-103S	RNBF-103L	RNBF-133S	RNBF-133L
Station no.	No.	3	3	3	3	3	3
Forging power	kg	35,000	60,000	80,000	80,000	115,000	115,000
Max.cutting diameter	mm	Φ8	Φ10	Φ12	Φ12	Φ15	Φ15
Max.cutting length	mm	86	130	105	192	145	250
Speed	pcs /min	160-240	120-180	120-180	80-120	100-160	60-100
P.K.O Stroke	mm	12	18	15	15	26	25
K.O Stroke	mm	65	100	80	162	102	230
Main ram stroke	mm	110	160	150	280	200	350
Main motor power	kw	11	18.5	18.5	22	30	30
Overall dim.of cut off die	mm	Φ35*45L	Φ35*56L	Φ45*59L	Φ45*59L	Φ63*69L	Φ55*70L
Overall dim.of punch die	mm	Φ40*90L	Φ45*125L	Φ53*115L	Φ53*112L	Φ60*130L	Φ60*179L
Overall dim.of main die	mm	Φ50*85L	Φ60*130L	Φ75*108L	Φ75*200L	Φ86*135L	Φ86*265L
Die pitch	mm	60	70	90	90	100	100
Approx.weight	kg	7,500	13,000	14,000	19,500	20,000	31,000
Applicable bolt diameter	mm	3-6	5-8	6-10	6-10	8-12.7	8-12.7
Shank length of blank	mm	10-65	15-100	15-100	25-152	20-100	70-210

4 station Energy Bolt Part Cold Forging Machine:

Specification	Unit	RNBF-64S	RNBF-64L	RNBF-84SL	RNBF-84L	RNBF-104S	RNBF-104L
Station no.	No.	4	4	4	4	4	4
Forging power	kg	40,000	40,000	60,000	65,000	80,000	80,000
Max.cutting diameter	mm	Φ8	Φ8	Φ10	Φ10	Φ12	Φ12
Max.cutting length	mm	86	125	185	130	130	185
Speed	pcs/min	160-240	120-160	120-180	120-160	120-160	85-135
P.K.O Stroke	mm	12	12	18	18	20	30
K.O Stroke	mm	65	100	150	100	100	160
Main ram stroke	mm	110	160	200	160	190	260
Main motor power	kw	11	11	15	22	22	30
Overall dim.of cut off die	mm	Φ30*45L	Φ30*45L	Φ35*56L	Φ35*56L	Φ45*56L	Φ45*59L
Overall dim.of punch die	mm	Φ40*90L	Φ40*125L	Φ45*125L	Φ45*125L	Φ53*125L	Φ53*215L
Overall dim.of main die	mm	Φ50*85L	Φ50*130L	Φ60*130L	Φ60*130L	Φ75*135L	Φ75*185L
Die pitch	mm	60	60	70	880	90	94
Approx.weight	kg	8,000	10,000	13,000	14,000	18,000	21,000
Applicable bolt diameter	mm	3-6	3-6	5-8	5-8	6-10	6-10
Shank length of blank	mm	10-65	10-100	25-150	15-100	20-152	80-300

5 station Energy Bolt Part Cold Forging Machine:

Specification	Unit	RNBF-65S	RNBF-85L	RNBF-105S	RNBF-135L	RNBF-165S	RNBF-205S
Station no.	No.	5	5	5	5	5	5
Forging power	kg	40,000	80,000	90,000	130,000	200,000	350,000
Max.cutting diameter	mm	Φ8	Φ10	Φ12	Φ15	Φ18	Φ23
Max.cutting length	mm	86	130	133	190	190	240
Speed	pcs/min	120-200	95-160	90-150	60-105	50-80	45-75
P.K.O Stroke	mm	12	26	20	30	35	46
K.O Stroke	mm	65	85	110	160	160	220
Main ram stroke	mm	110	140	190	270	285	346
Main motor power	kw	11	22	22	37	55	75
Overall dim.of cut off die	mm	Φ30*45L	Φ35*62L	Φ45*59L	Φ63*69L	Φ64*100L	Φ75*120L
Overall dim.of punch die	mm	Φ40*90L	Φ45*115L	Φ53*115L	Φ60*130L	Φ75*185L	Φ90*215L
Overall dim.of main die	mm	Φ50*85L	Φ60*120L	Φ75*135L	Φ86*190L	Φ108*200L	Φ125*240L
Die pitch	mm	60	80	94	110	129	140
Approx.weight	kg	10,000	16,000	20,000	31,000	52,000	40,000
Applicable bolt diameter	mm	3-6	5-8	6-10	8-12.7	10-16	12-20
Shank length of blank	mm	10-65	15-100	15-105	25-152	25-152	25-200

Machine Details And Workshop Display

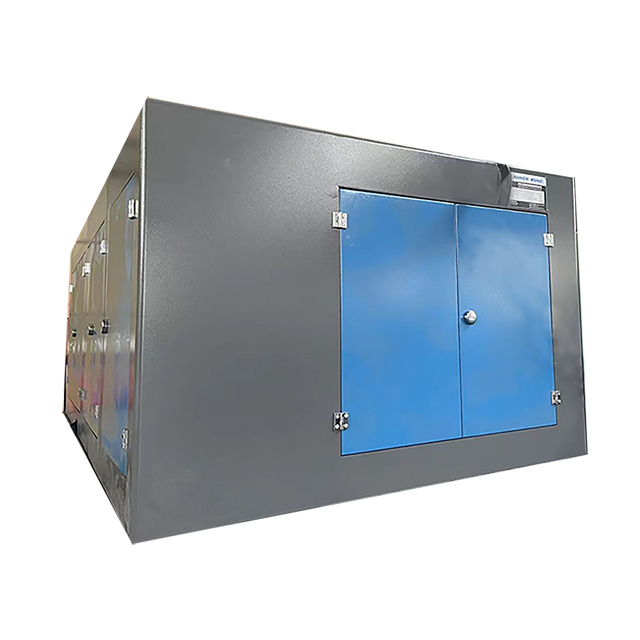

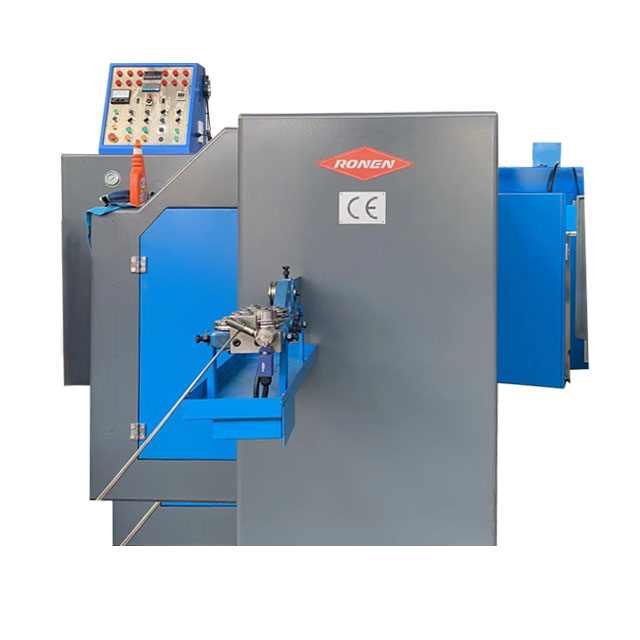

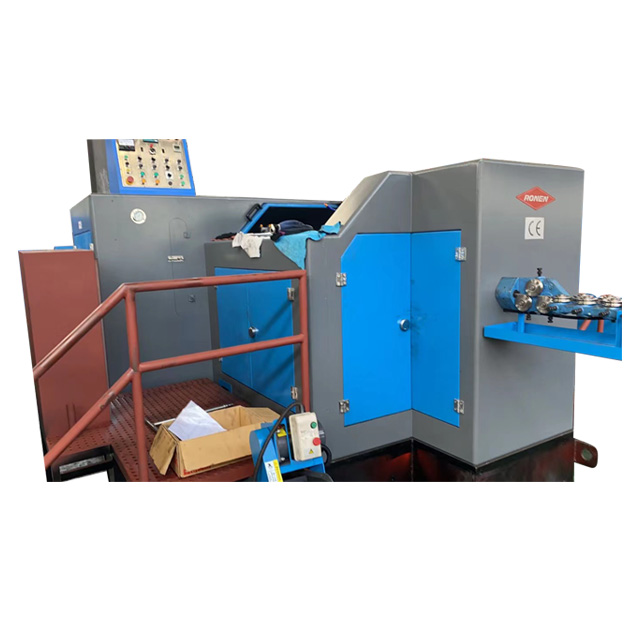

Energy Bolt Part Cold Forging Machine in RONEN workshop.
