Best Price Electrical Appliances Nut Cold Forging Machine is offered by China manufacturer RONEN MACHINERY. RONEN MACHINERY is one of the top manufacturers in China of Fasteners Making Machines. Welcome to purchase Electrical Appliances Nut Cold Forging Machine from us. Every request from customers is being replied within 24 hours.
Electrical Appliances Nut Cold Forging Machine peculiarities:
1.The design of the closed protective cover greatly reduces the pollution of the hot oil mist to the working environment..
2.RONEN Cold Forging Machine could produce nuts including：Flange Nuts, Weld Nuts, Square Nuts, Rivets, Hex Nuts, Sleeves, Acorn Nuts, Barrel Nuts, Wing Nuts, Split Nuts, Nylon Nuts, Lock Nuts,Bearing and Auto Fasteners,etc.
Product Parameter (Specification)
| Model |
Unit |
11B-6S |
14B-6S |
19B-6S |
24B-6S |
33B-6S |
41B-6S |
|
Forging Station |
NO. |
6 |
6 |
6 |
6 |
6 |
6 |
|
Across Flats of Nut |
mm |
5.5-12.7 |
10-17 |
14-22 |
17-26 |
24-33 |
30-41 |
|
Suitable Hex Nut |
DIN |
M3-M6 |
M6-M10 |
M8-M14 |
M10-M18 |
M16-M22 |
M20-M27 |
|
Cut-off Dia |
mm |
11 |
16 |
19 |
24 |
31 |
40 |
|
Dies Pitch |
mm |
50 |
60 |
80 |
100 |
140 |
165 |
|
Forging Power |
Ton |
60 |
90 |
135 |
230 |
360 |
450 |
|
Main Motor |
HP |
15 |
20 |
50 |
75 |
150 |
200 |
|
Lubrication Motor |
HP |
1.5 |
1.5 |
1.5 3 |
1.5 3 |
3 |
3 |
|
Installed Quantity |
SET |
(1) |
(2) |
(1) (1) |
(1) (1) |
(2) |
(2) |
|
Lubricant |
L |
700 |
1000 |
1200 |
1700 |
1900 |
2200 |
|
Approx Weight |
Ton |
4.5 |
8 |
14 |
25 |
45 |
72 |
Machine Details And Finished Products Display

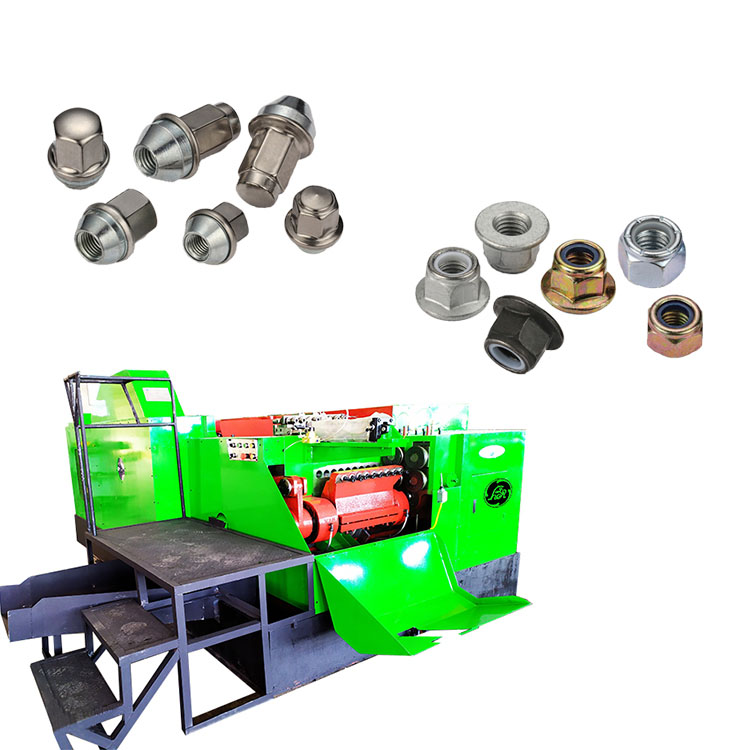

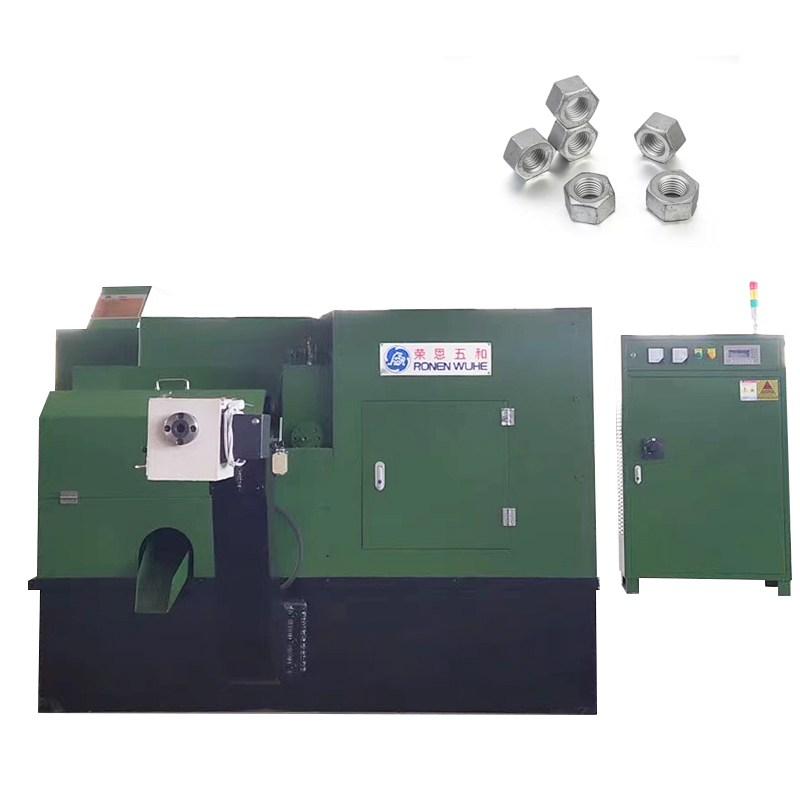

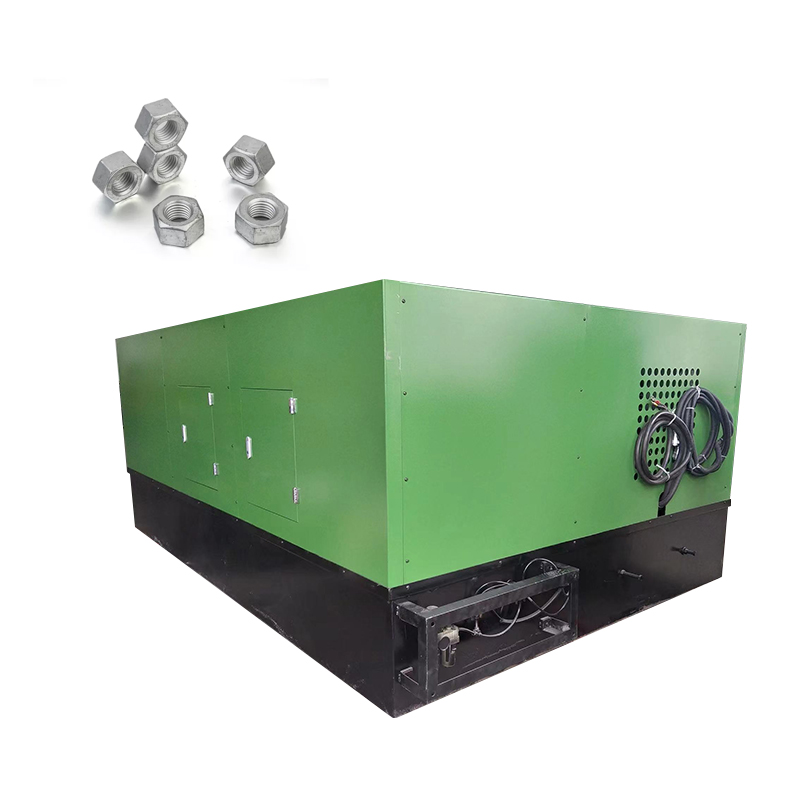

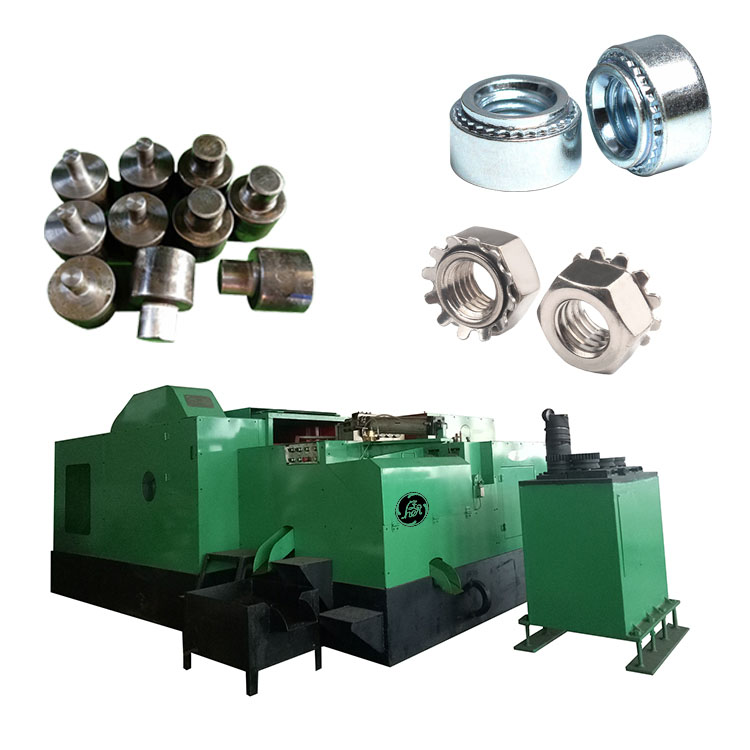

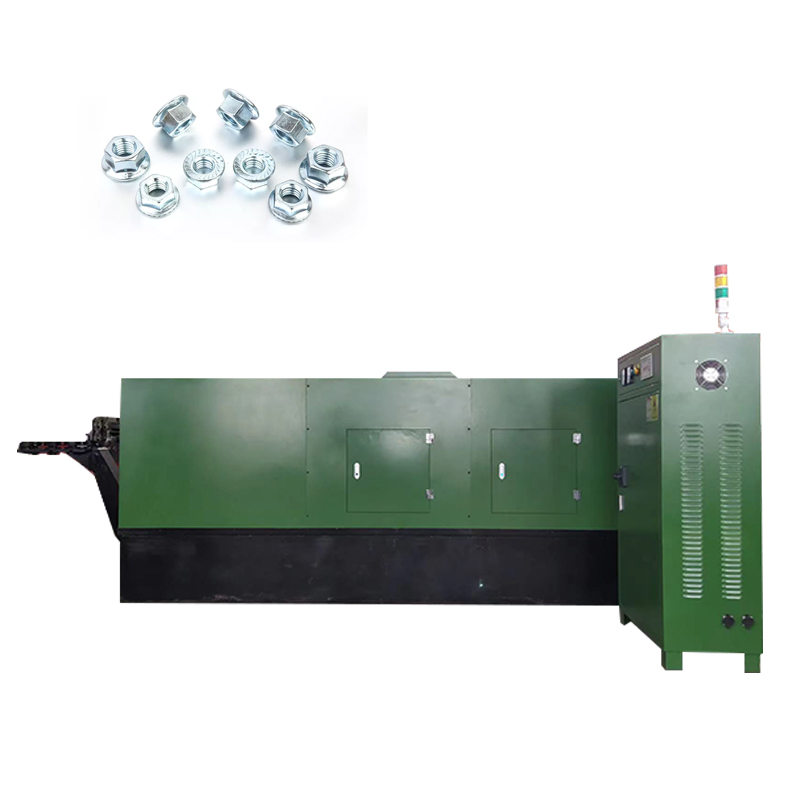

Electrical Appliances Nut Cold Forging Machine display:
Finished products display:
Product Function Display Video
Electrical Appliances Nut Cold Forging Machine working video.
5.Certifications
Electrical Appliances Nut Cold Forging Machine certificate:
FAQ
Q: Why should you buy from us not from other suppliers?
A:Over 20 years of experiences in designing and manufacturing high level of metal forming machines..
Q:Do you provide video outgoing-inspection?
A:Yes,we provide the video of outgoing-inspection..
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: Can your machinery produce non-standard parts?
A: Yes, we can. We have the design and production engineers with more than 20 years of experience, we can customize according to your drawings or samples..
Q: If it is beyond the warranty period, can we check the technical problems with you?
A: Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
