RONEN MACHINERY is one of the famous China Fasteners Machines Cold manufacturers and suppliers. Our factory specializes in manufacturing Brass Rivet Part Making Machine. Welcome to buy China Quality Brass Rivet Part Making Machine from RONEN MACHINERY. Every request from customers is being replied within 24 hours.
Brass Rivet Part Making Machine characteristics:
1.The machine has the advantages of fast production speed, small error, high precision, convenient operation and low maintenance rate.
2.This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mold form. Finished Feeding, straightening, cutting material, forming, discharging by one machine. This model is especially for semi-hollow rivet making.
Product Parameter (Specification)
|
Model |
RN03-20 |
RN04-40 |
RN05-60 |
RN05-80 |
RN06-90 |
RN06-120 |
RN08-120 |
RN10-120 |
|
Max. Blank Diameter mm |
Φ4 |
Φ5 |
Φ7 |
Φ7 |
Φ9 |
Φ9 |
Φ11 |
Φ13 |
|
Max. Blank Length mm |
20 |
40 |
60 |
80 |
90 |
120 |
120 |
120 |
|
Capacity Pcs/min |
100-120 |
90-100 |
70-90 |
70-90 |
60-80 |
60-80 |
50-70 |
50-60 |
|
Main Die Diameter mm |
Φ20*36 |
Φ32*58 |
Φ34.5*95 |
Φ34.5*98 |
Φ45*120 |
Φ45*150 |
Φ55*160 |
Φ70*160 |
|
Punch Die Diameter mm |
Φ18*50 |
Φ25*65 |
Φ31*75 |
Φ31*80 |
Φ35*100 |
Φ35*100 |
Φ40*120 |
Φ55*150 |
|
Cut-off Die Diameter mm |
Φ13*20 |
Φ15*30 |
Φ19*35 |
Φ19*35 |
Φ24*40 |
Φ24*40 |
Φ28*45 |
Φ35*50 |
|
Cutter Size mm |
6*25*42 |
9*32*70 |
9*35*72 |
9*35*72 |
12*35*77 |
12*35*77 |
12*42*90 |
16*55*115 |
|
Main Motor KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
5.5 |
11 |
|
Weight kg |
624 |
1105 |
2100 |
2340 |
3640 |
3900 |
4160 |
5980 |
|
Volume (L*W*H)/m |
1.40*0.75*0.90 |
2.00*0.85*1.15 |
2.40*1.10*1.25 |
2.40*1.10*1.25 |
2.70*1.40*1.60 |
3.10*1.40*1.60 |
3.70*1.60*1.80 |
4.80*1.80*1.32 |
Machine Details And Finished Products Display

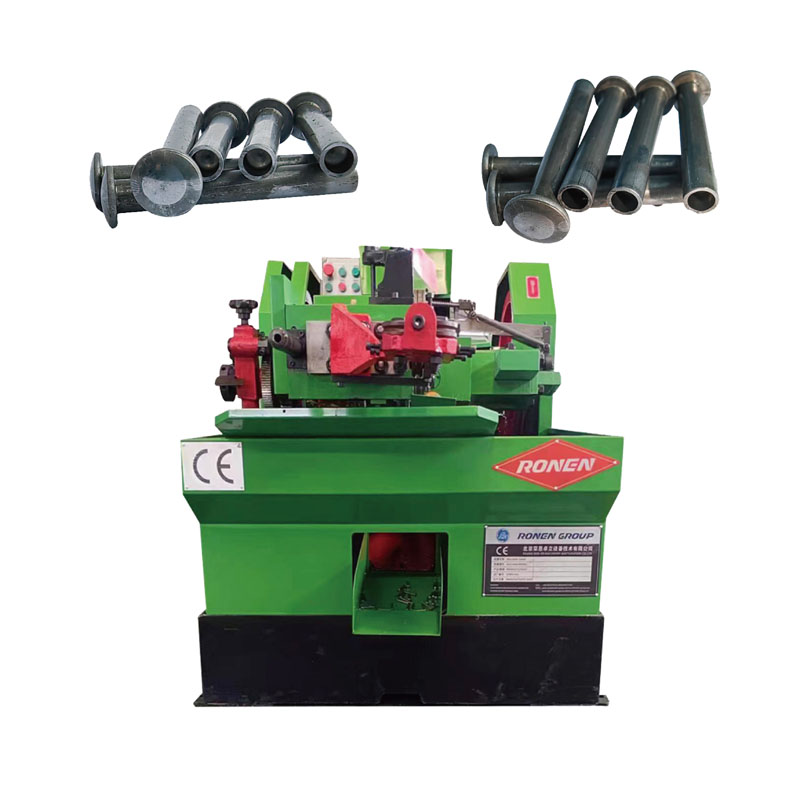

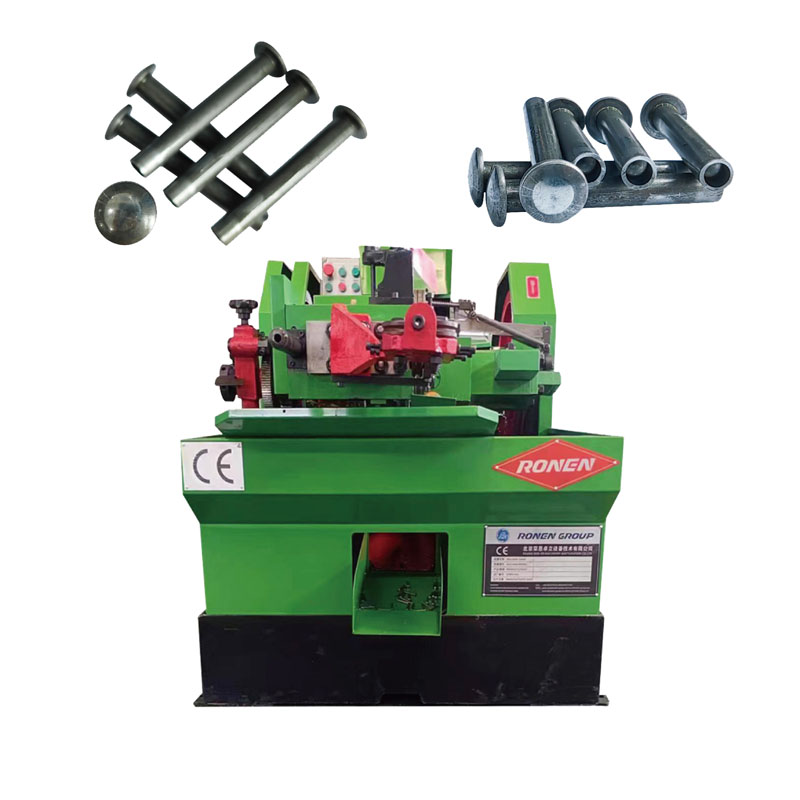

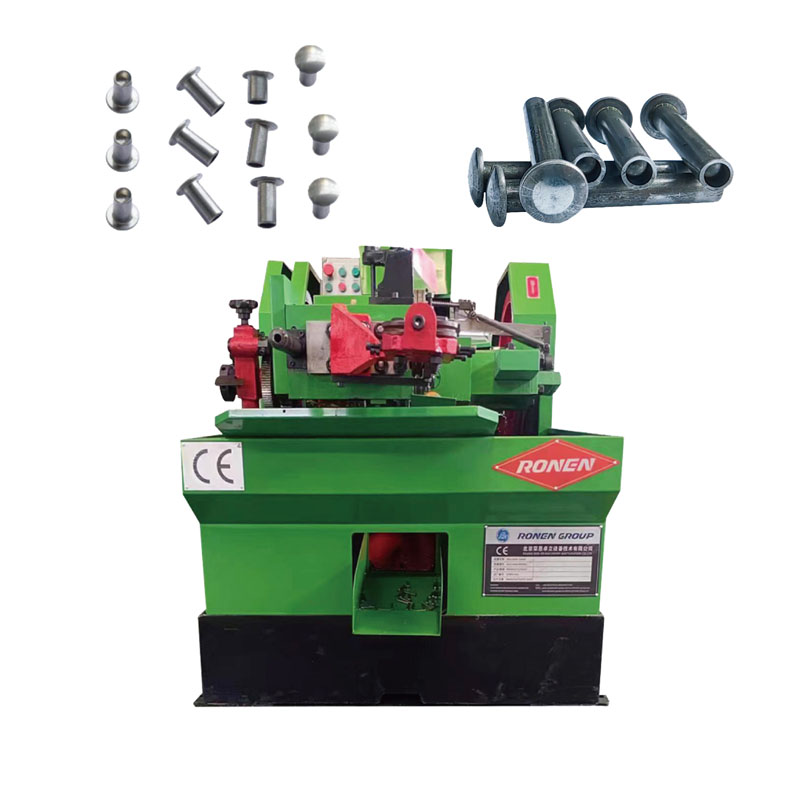

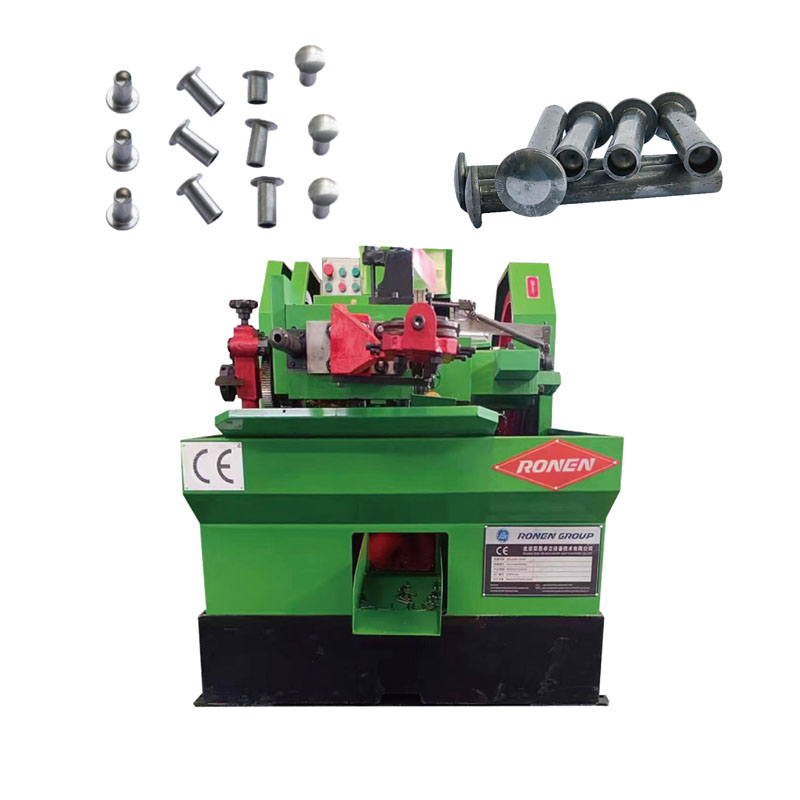

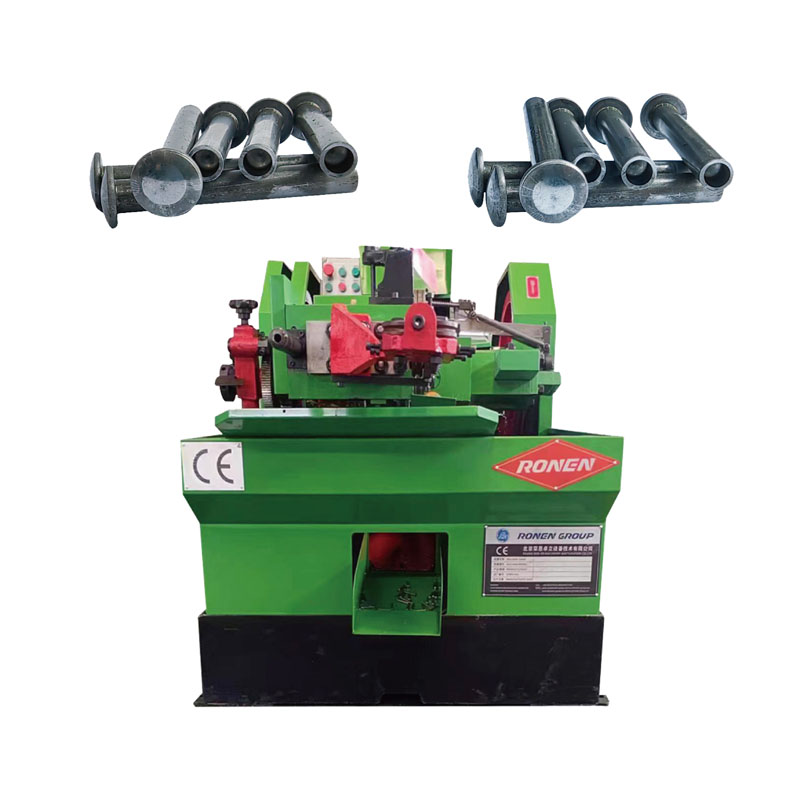

Brass Rivet Part Making Machine details :
The finished-products:
Product Function Display Video
Brass Rivet Part Making Machine running video
Packing And Delivery
Brass Rivet Part Making Machine : packing and shipping.
Certifications
Brass Rivet Part Making Machine : certificate.
FAQ
Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: How long can you provide the warranty?
A: Our machine has a one-year warranty.
Q: Where is your factory?
A: Our manufacturing workshop is located in Hebei Province in China.
