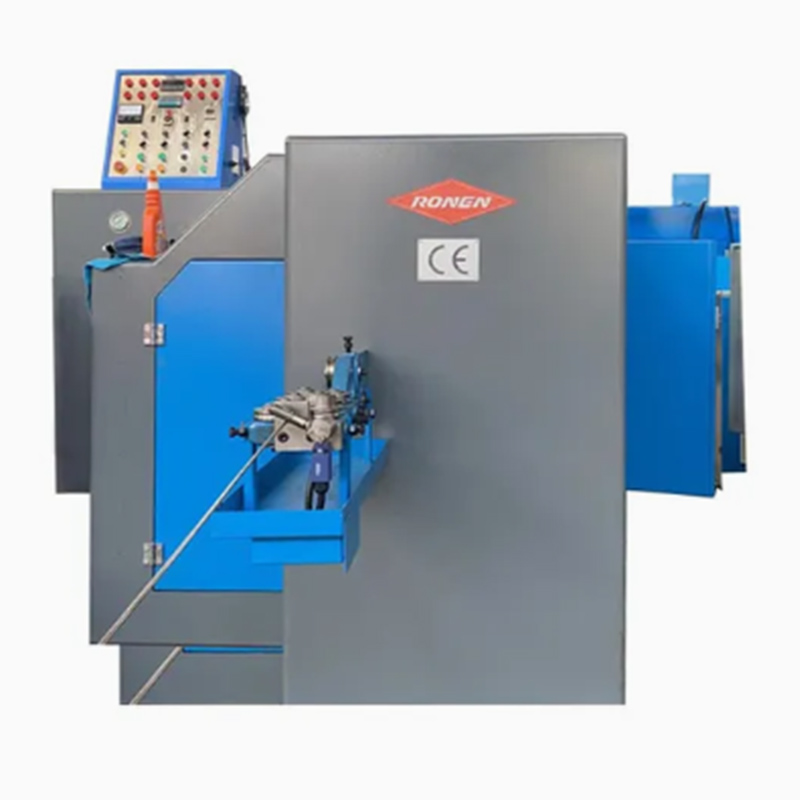

Hot Selling Low Price 3 Die 3 Below Bolt Part Cold Heading Machine is offered by Ronen®. As the professional Fastener Multi Station Bolt Part Cold Heading Machine manufacturer, Ronen® MACHINERY would like to provide you 3 Die 3 Below Bolt Part Cold Heading Machine with high quality and reasonable price. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Ronen® is one of China 3 Die 3 Below Bolt Part Cold Heading Machine manufacturers. With CE certified and finished commissioning by our factory, welcome to purchase 3 Die 3 Below Bolt Part Cold Heading Machine from us.
3 Die 3 Below Bolt Part Cold Heading Machine advantages:
1.The company has different types of multi-station cold forging machines, these machine series are mainly used for multi-step or difficult fasteners.
2.These machine series are designed according to the structure of Taiwan Machinery.
3. The machine is mainly made of materials imported from Taiwan, which has the characteristics of wear resistance, good performance and stable production.
Product Parameter (Specification)
3 station 3 Die 3 Below Bolt Part Cold Heading Machine:
|
Specification |
Unit |
RNBF-63S |
RNBF-83L |
RNBF-103S |
RNBF-103L |
RNBF-133S |
RNBF-133L |
|
Station no. |
No. |
3 |
3 |
3 |
3 |
3 |
3 |
|
Forging power |
kg |
35,000 |
60,000 |
80,000 |
80,000 |
115,000 |
115,000 |
|
Max.cutting diameter |
mm |
Φ8 |
Φ10 |
Φ12 |
Φ12 |
Φ15 |
Φ15 |
|
Max.cutting length |
mm |
86 |
130 |
105 |
192 |
145 |
250 |
|
Speed |
pcs /min |
160-240 |
120-180 |
120-180 |
80-120 |
100-160 |
60-100 |
|
P.K.O Stroke |
mm |
12 |
18 |
15 |
15 |
26 |
25 |
|
K.O Stroke |
mm |
65 |
100 |
80 |
162 |
102 |
230 |
|
Main ram stroke |
mm |
110 |
160 |
150 |
280 |
200 |
350 |
|
Main motor power |
kw |
11 |
18.5 |
18.5 |
22 |
30 |
30 |
|
Overall dim.of cut off die |
mm |
Φ35*45L |
Φ35*56L |
Φ45*59L |
Φ45*59L |
Φ63*69L |
Φ55*70L |
|
Overall dim.of punch die |
mm |
Φ40*90L |
Φ45*125L |
Φ53*115L |
Φ53*112L |
Φ60*130L |
Φ60*179L |
|
Overall dim.of main die |
mm |
Φ50*85L |
Φ60*130L |
Φ75*108L |
Φ75*200L |
Φ86*135L |
Φ86*265L |
|
Die pitch |
mm |
60 |
70 |
90 |
90 |
100 |
100 |
|
Approx.weight |
kg |
7,500 |
13,000 |
14,000 |
19,500 |
20,000 |
31,000 |
|
Applicable bolt diameter |
mm |
3-6 |
5-8 |
6-10 |
6-10 |
8-12.7 |
8-12.7 |
|
Shank length of blank |
mm |
10-65 |
15-100 |
15-100 |
25-152 |
20-100 |
70-210 |
4 station 3 Die 3 Below Bolt Part Cold Heading Machine:
|
Specification |
Unit |
RNBF-64S |
RNBF-64L |
RNBF-84SL |
RNBF-84L |
RNBF-104S |
RNBF-104L |
|
Station no. |
No. |
4 |
4 |
4 |
4 |
4 |
4 |
|
Forging power |
kg |
40,000 |
40,000 |
60,000 |
65,000 |
80,000 |
80,000 |
|
Max.cutting diameter |
mm |
Φ8 |
Φ8 |
Φ10 |
Φ10 |
Φ12 |
Φ12 |
|
Max.cutting length |
mm |
86 |
125 |
185 |
130 |
130 |
185 |
|
Speed |
pcs/min |
160-240 |
120-160 |
120-180 |
120-160 |
120-160 |
85-135 |
|
P.K.O Stroke |
mm |
12 |
12 |
18 |
18 |
20 |
30 |
|
K.O Stroke |
mm |
65 |
100 |
150 |
100 |
100 |
160 |
|
Main ram stroke |
mm |
110 |
160 |
200 |
160 |
190 |
260 |
|
Main motor power |
kw |
11 |
11 |
15 |
22 |
22 |
30 |
|
Overall dim.of cut off die |
mm |
Φ30*45L |
Φ30*45L |
Φ35*56L |
Φ35*56L |
Φ45*56L |
Φ45*59L |
|
Overall dim.of punch die |
mm |
Φ40*90L |
Φ40*125L |
Φ45*125L |
Φ45*125L |
Φ53*125L |
Φ53*215L |
|
Overall dim.of main die |
mm |
Φ50*85L |
Φ50*130L |
Φ60*130L |
Φ60*130L |
Φ75*135L |
Φ75*185L |
|
Die pitch |
mm |
60 |
60 |
70 |
880 |
90 |
94 |
|
Approx.weight |
kg |
8,000 |
10,000 |
13,000 |
14,000 |
18,000 |
21,000 |
|
Applicable bolt diameter |
mm |
3-6 |
3-6 |
5-8 |
5-8 |
6-10 |
6-10 |
|
Shank length of blank |
mm |
10-65 |
10-100 |
25-150 |
15-100 |
20-152 |
80-300 |
5 station 3 Die 3 Below Bolt Part Cold Heading Machine:
|
Specification |
Unit |
RNBF-65S |
RNBF-85L |
RNBF-105S |
RNBF-135L |
RNBF-165S |
RNBF-205S |
|
Station no. |
No. |
5 |
5 |
5 |
5 |
5 |
5 |
|
Forging power |
kg |
40,000 |
80,000 |
90,000 |
130,000 |
200,000 |
350,000 |
|
Max.cutting diameter |
mm |
Φ8 |
Φ10 |
Φ12 |
Φ15 |
Φ18 |
Φ23 |
|
Max.cutting length |
mm |
86 |
130 |
133 |
190 |
190 |
240 |
|
Speed |
pcs/min |
120-200 |
95-160 |
90-150 |
60-105 |
50-80 |
45-75 |
|
P.K.O Stroke |
mm |
12 |
26 |
20 |
30 |
35 |
46 |
|
K.O Stroke |
mm |
65 |
85 |
110 |
160 |
160 |
220 |
|
Main ram stroke |
mm |
110 |
140 |
190 |
270 |
285 |
346 |
|
Main motor power |
kw |
11 |
22 |
22 |
37 |
55 |
75 |
|
Overall dim.of cut off die |
mm |
Φ30*45L |
Φ35*62L |
Φ45*59L |
Φ63*69L |
Φ64*100L |
Φ75*120L |
|
Overall dim.of punch die |
mm |
Φ40*90L |
Φ45*115L |
Φ53*115L |
Φ60*130L |
Φ75*185L |
Φ90*215L |
|
Overall dim.of main die |
mm |
Φ50*85L |
Φ60*120L |
Φ75*135L |
Φ86*190L |
Φ108*200L |
Φ125*240L |
|
Die pitch |
mm |
60 |
80 |
94 |
110 |
129 |
140 |
|
Approx.weight |
kg |
10,000 |
16,000 |
20,000 |
31,000 |
52,000 |
40,000 |
|
Applicable bolt diameter |
mm |
3-6 |
5-8 |
6-10 |
8-12.7 |
10-16 |
12-20 |
|
Shank length of blank |
mm |
10-65 |
15-100 |
15-105 |
25-152 |
25-152 |
25-200 |
Machine Details And Workshop Display
3 Die 3 Below Bolt Part Cold Heading Machine in RONEN workshop.
Finished product:
Product Function Display Video
Working video of 3 Die 3 Below Bolt Part Cold Heading Machine.
Certifications
3 Die 3 Below Bolt Part Cold Heading Machine: certificates.
FAQ
Q: How long can you provide the warranty?
A: Our machine has a one-year warranty.
Q:How about the shipping cost?
A: The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
Q: Does your factory have customers in other countries?
A: We had exported to Europe, Asia, Africa, North America, South America, Oceania.
Q: Can you provide commissioning video and samples?
A: Sure. We will update the information (photos, videos, etc.) with you during and after commissioning and send samples. The shipment will be arranged only after you confirm it is correct.
Q: What can you buy from us?
A: Cold heading machine, Cold forging machine, Bolts nuts machine, Screws machine, Threading machine, etc.
